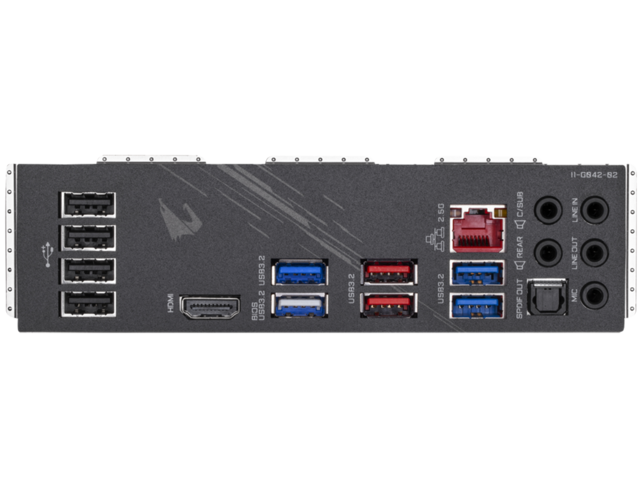

Интерфейси:

• 1 x HDMI
• 4 x USB 2.0
• 2 x USB 3.2 Gen 2 Type-A порта
• 4 x USB 3.2 Gen 1 порта
• 1 x RJ-45 порт
• 1 x Optical S/PDIF out
• 5 x аудио жака

Слотове за разширение:

• 1 x PCI Express x16 слот, running at x16 (PCIEX16)
• 1 x PCI Express x16 слот, running at x4 (PCIEX4)
• 2 x PCI Express x1 слот

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 2 x Thunderbolt™ add-in card connectors
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

Съхранение:

• Intel Z490 Chipset:
  2 x M.2 конектора (Socket 3, M key, тип 2242/2260/2280/22110 SATA и PCIe x4/x2 SSD) (M2M_SB/M2A_SB)
  6 x SATA 6Gb/s конектора
  Поддържа Raid 0, 1, 5, 10
  Intel Optane Memory Ready

Памет:

• 4 x DDR4 DIMM цокъла, поддържащи до 128GB системна памет
• Архитектура с две канални памети
• 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, небуферирана памет
•  Intel Extreme Memory Profile
