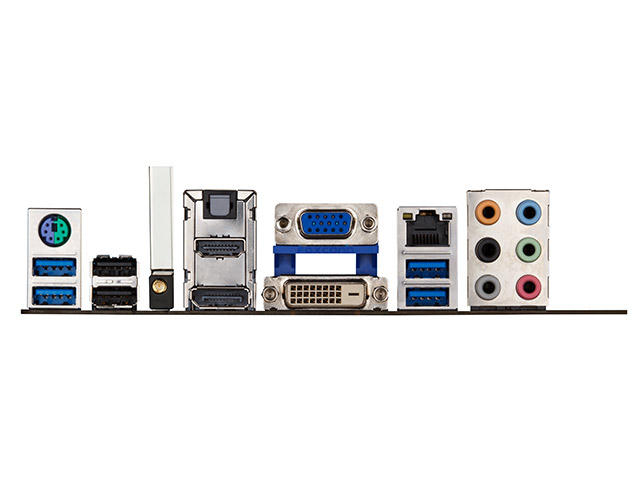

Интерфейси:

•     2x SATA III (Поддържано RAID ниво 0, 1, 10, 5)
•     4x SATA II
•     1x PS/2 порт (мишка/слушалки)
•     1x DVI
•    1x D-Sub
•    1x DisplayPort
•    1x HDMI
•    1x LAN (RJ45) port(s)
•    4x USB 3.0
•    2x USB 2.0
•    1x Optical S/PDIF out
•    6x аудио жакове

Слотове за разширение:

•   2x PCIe 3.0/2.0 x16 (x16 or dual x8, blue)
•   1x PCIe 2.0 x16 (x4 mode, black)
•   2x PCIe 2.0 x1
•   2x PCI

Конектори:

• 1x USB 3.0 connector(s) support 2 USB 3.0 (19-pin)
• 4x USB 2.0 connector(s) support 8 USB 2.0
• 1x COM port(s) connector
• 3x SATA 6Gb/s connector
• 4x SATA 3Gb/s connector
• 1x CPU Fan connector (4 -pin)
• 3x Chassis Fan connector (4 -pin)
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector(AAFP)
• 1x System panel

Комплектът включва:

• 2x SATA 3Gb/s кабел
• 2x SATA 6Gb/s кабел
