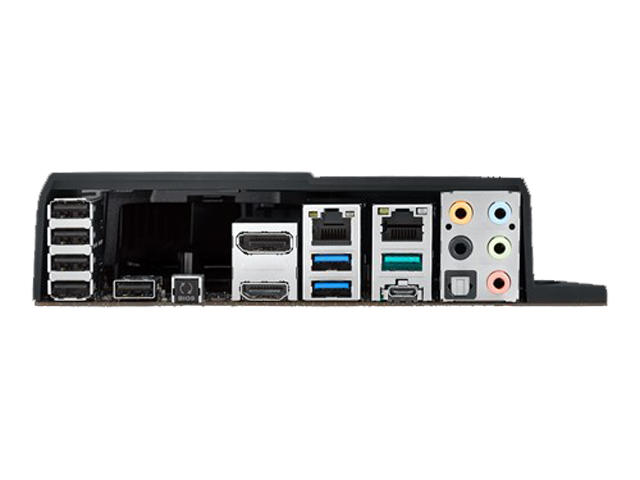

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45) port(s)
• 1 x USB 3.1 Type-A
• 1 x USB 3.1 Type-C
• 2 x USB 3.0
• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 5 x аудио жака
• 1 x USB BIOS Flashback бутон
• 1 x TUF Detective USB порт

Слотове за разширение:

Конектори:

• 1 x AAFP connector
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 5 x Chassis Fan connector(s) (5 x 4 -pin)
• 1 x Assistant Fan connector(s) (1 x 4 -pin)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x CPU OV
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector
• 1 x High AMP Fan header (4-pin)
• 3 x T_Sensor Connector
• 1 x W_Pump+ Header

Съхранение:

•  1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)(Сокет M.2_1 споделя SATA_1 порт когато се ползва устройство в режим M.2 SATA )


• 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)( вертикален)

• 6 x SATA 6Gb/s порта
• Поддържа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology 15 поддръжка
• Поддържа Intel Smart Response Technology ( тази функция ще работи според зависимост инсталираният процесор)

• Intel Optane™ Memory Ready ( функцията се поддържа само от 7-мо поколение Intel процесори)


Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64GB системна памет
• Поддръжка на модули памет DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
