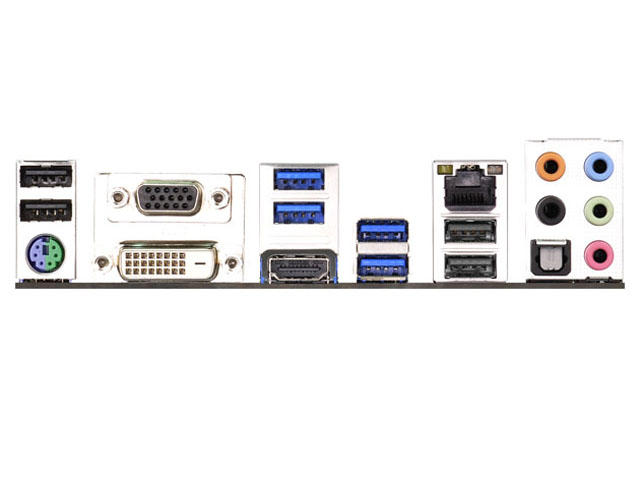

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 1 x Optical SPDIF Out
• 4 x USB 2.0
• 4 x USB 3.0
• 1 x RJ-45 LAN с LED индикация
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 3.0 x16 Слот(PCIE1: x16 mode)
• 1 x PCI Express 2.0 x16 Слот(PCIE3: x4 mode)
• 2 x PCI Express 2.0 x1 Слотове
• 2 x PCI Слотове
• ПоддържаAMD Quad CrossFireX and CrossFireX

Конектори:

• 1 x COM Port Header
• 1 x Chassis Intrusion Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( само с актуалицирана до последна версия на BIOS)

• 2 x USB 2.0 Headers (Поддържа 4 USB 2.0 ports) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Поддържа 2 USB 3.0 ports) (Поддържа ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug
• 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)


The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled.

Аксесоари:

• 2x SATA Data кабел
• 1 x Screw for M.2_SSD (NGFF) Socket 3

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
