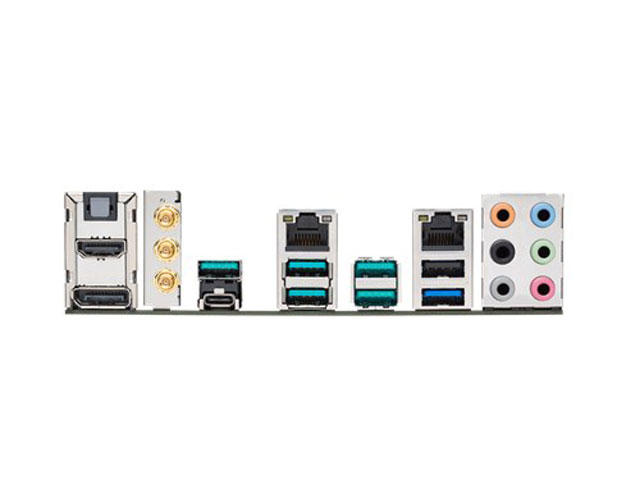

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45)
• 5 x USB 3.1 Type-A
• 1 x USB 3.1 Type-C
• 1 x USB 3.0
• 1 x USB 2.0 (един порт може да се превключи към USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
• 1 x 8-channel Audio I/O

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16
• 1 x PCIe 3.0/2.0 x16 (x4 mode)
• 4 x PCIe 3.0/2.0 x1

Конектори:

• 1 x AAFP connector
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SATA Express connector: ,
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
• 1 x TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 1 x CPU OPT Fan connector(s) (4 -pin)
• 4 x Chassis Fan connector(s) (4 -pin)
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x EZ XMP switch
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x TPU switch(es)
• 1 x EPU switch(es)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback button(s)
• 1 x Water Pump header (4-pin)
• 1 x 14-1 pin TPM connector
• Bluetooth V4.0

Съхранение:

• 1 x SATA Express порт , съвместим с 2 x SATA 6.0 Gb/s портове
• 1 x M.2 x4 Socket 3, с M Key, тип 2242/2260/2280/22110 дискови устройства поддържащи и двата режима (SATA & PCIE )
• 6 x SATA 6Gb/s порта
• Поддъжа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology supports
• Поддъжа Intel Smart Response Technology

ASMedia SATA 6Gb/s controller :

• 2 x SATA 6Gb/s port(s), black,

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz non-ECC, небуферирана памет

*7ма генерация  Intel CPU поддържа DDR4 до 2400;6та генерация Intel CPU поддържа DDR4 до 2133Mhz

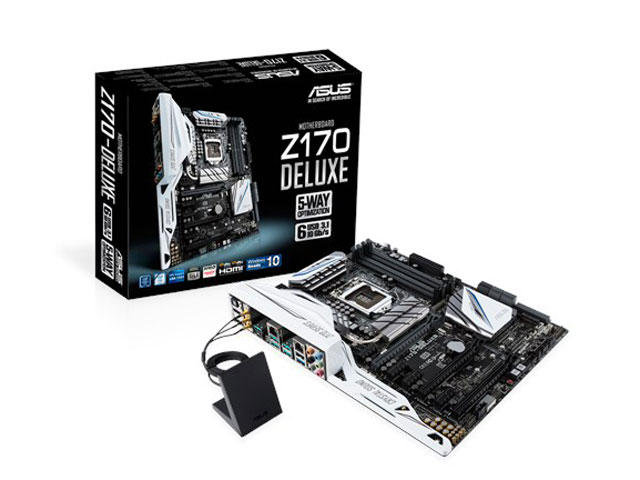

Комплектът включва:

• ASUS Q-Shield
• 6 x SATA 6Gb/s кабел
• 2 x M.2 Screw Package
• 1 x инструмент за инсталиране на CPU
• 1 x ASUS 3T3R dual band Wi-Fi преносима антена (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x HYPERM.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (1 in 1)
• 1 x ASUS Hyper Kit
