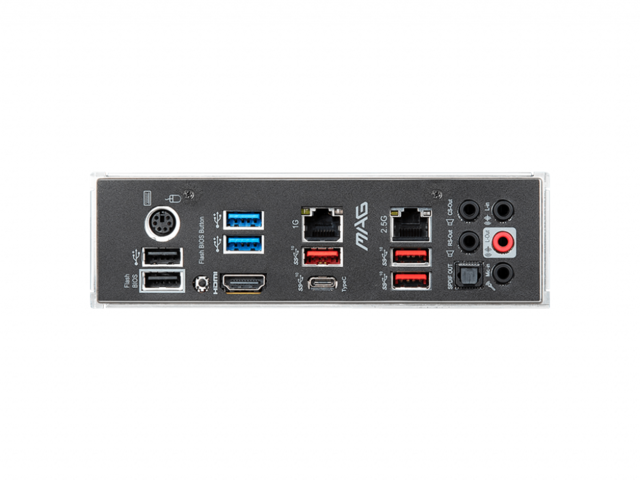

Интерфейси:
- PS/2 Mouse / Keyboard
- 2x USB 3.2 Gen 1 5Gbps (Type-A)
- 2x USB 2.0
- 1x USB 3.2 Gen 2 10Gbps (Type-C)
- 3x USB 3.2 Gen 2 10Gbps (Type-A)
- HDMI 2.1 Port
- Gigabit LAN Port
- 2.5G LAN Port
- 5x HD Audio Connectors
- Optical S/PDIF OUT
Конектори:
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Serial port connector
- 1x Chassis Intrusion connector
Разширителни портове:
- Поддържа PCIe 4.0 / PCIe 3.0 спецификация
- 1x PCIe x16 slot (From processor)
- 1x PCIe x16 slot (From X570 chipset)
- 2x PCIe 3.0 x1 slots (From X570 chipset)
Съхранение:
- 6x SATA 6Gb/s ports (from AMD X570 Chipset)
- 2x M.2 slots (Key M)
- Поддържа RAID 0, RAID 1 и RAID 10
Памет:
- 4x DDR4 слота за памет, поддържащи до 128GB
- Поддържа 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz от JEDEC
- Поддържа двуканален режим
- Поддържа non-ECC, небуферирана памет
LED Спецификации:
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
- 1X EZ LED Control switch
Поддържа технологията AMD CrossFire ™
