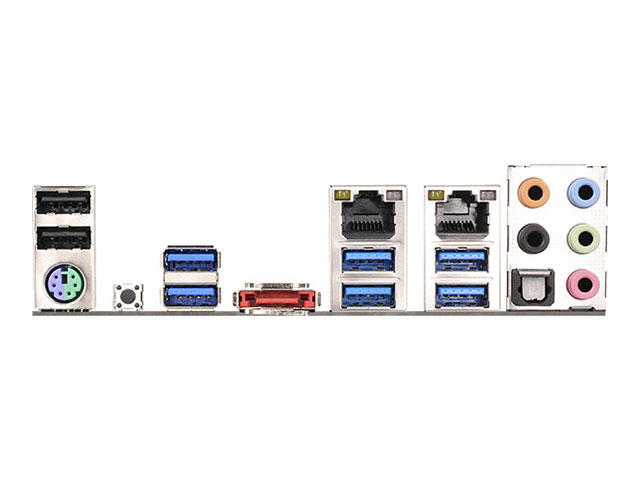

Интерфейси:

• 1x PS/2 комбиниран мишка/клавиатура
• 1x Optical SPDIF изход
• 2x USB 2.0
• 4x USB 3.0
• 2x USB 3.0
• 2x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• 1x Clear CMOS Switch
• HD аудио жакове: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 10x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13)
• 1x eSATA Connector, supports NCQ, AHCI and Hot Plug
• 1x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Слотове за разширение:

• 3x PCI Express 3.0 x16 Slots (PCIE1 x16 mode; PCIE3 x16 mode; PCIE5 x8 mode)
• 2x PCI Express 2.0 x1 Slots
• 1x mini-PCI Express Slot

Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x HDD Saver Connector
• 1x PCIe Power Connector
• 1x Front Panel Audio Connector
• 1x Thunderbolt™ AIC Connector*
• 2x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Vertical Type A USB 2.0
• 2x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Dr. Debug with LED
• 1x Power Switch with LED
• 1x Reset Switch with LED
• 1x BIOS Selection Switch
