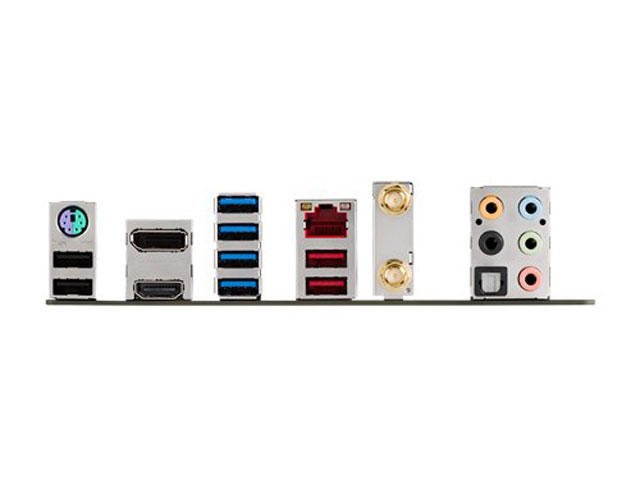

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 2 x USB 3.1 Type-A
• 4 x USB 3.0
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 2 x Wi-Fi antenna портове ( комплекта не съдържа антена)
• Bluetooth V4.1

Слотове за разширение:

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
• 2 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector

Комплектът включва:

• ASUS Q-Shield
• M.2 2242 кит за монтаж
• 4 x SATA 6Gb/s кабел
• 1 x M.2 Screw Package
• 1 x инструмент за инсталиране на CPU
