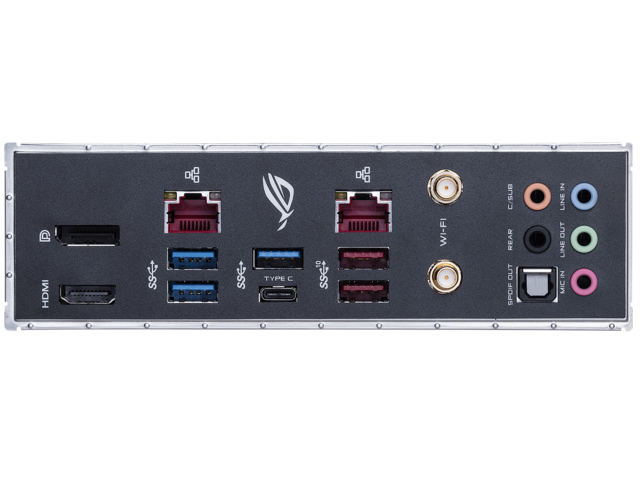

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45)
• 2 x USB 3.1 Gen 2
• 1 x USB 3.1 Gen 1 (blue) USB Type-C
• 3 x USB 3.1 Gen 1
• 1 x Optical S/PDIF out
• 5 x Audio жака
• 1 x Wi-Fi antenna port(s)

Слотове за разширение:

Конектори:

• 1 x Aura Addressable Strip Header(s)
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Съхранение:

Intel H370 Chipset :

• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (PCIE 3.0 x 4 режим)
• Поддържа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology 15
• 4 x SATA 6Gb/s порта
• Intel Optane Memory Ready
