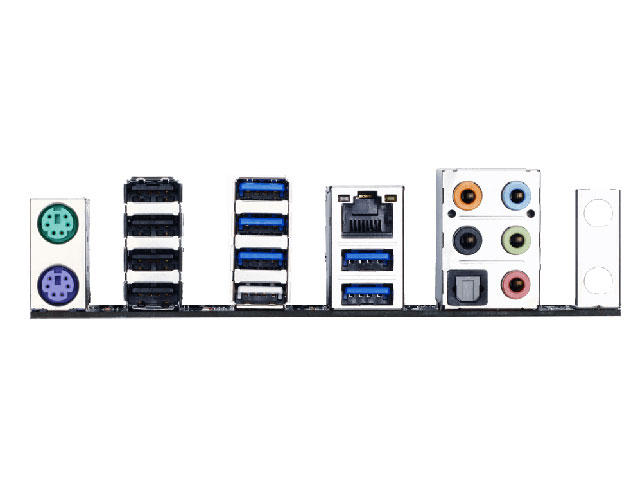

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 6 x USB 3.0/2.0
• 4 x USB 2.0/1.1
• 1 x RJ-45
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• 2 x Wi-Fi дупки за конектори  за антени ( антени не са включени в комплекта)

Слотове за разширение:

• 2 x PCI Express x16 слота , работещи в режим x16 (PCIE_1, PCIE_2)
• 2 x PCI Express x16 слота , работещи в режим x8 (PCIE_3, PCIE_4)
• 3 x PCI Express x1 слота
• 1 x M.2 Socket 1 конектори за безжичен комуникационен модул(M2_WIFI)

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x PCIe power connector
• 1 x I/O shield audio LED power connector
• 1 x heatsink LED power connector
• 1 x M.2 Socket 3 connector
• 1 x SATA Express connector
• 10 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling fan header (CPU_OPT)
• 3 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.0/2.0 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header
• 1 x Thunderbolt add-in card connector
• 1 x Clear CMOS jumper

Съхранение:

• 1 x M.2 PCIe конектор (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
• 1 x SATA Express конектор
• 6 x SATA 6Gb/s конектора (SATA3 0~5)
• Поддръжка на RAID 0, RAID 1, RAID 5, и RAID 10
  * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
  (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)

Памет:

• 8 цокъла DDR4 DIMM, поддържащи до 128 GB системна памет
• Поддръжка на модули памет DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
