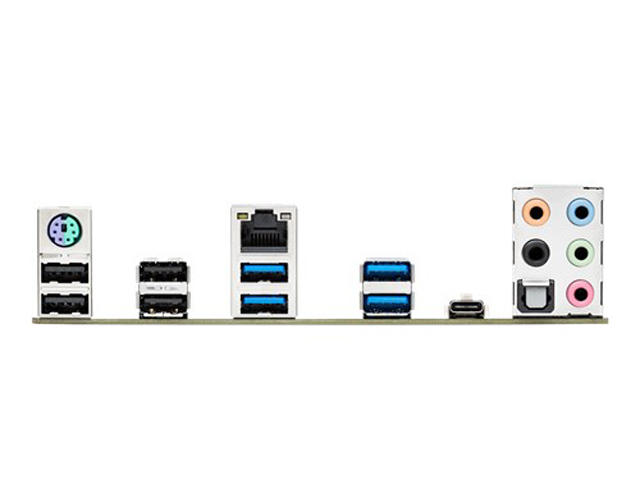

• 1 x PS/2 за мишка/ клавиатура
• 1 x LAN (RJ45)
• 1 x USB 3.1 Type-C
• 4 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x аудио жака

40-нишков процесор

• 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)( PCIe x16_3 споделя честотна лента с M.2 )
• 2 x PCIe 2.0 x1

28-нишков процесор

• 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)( PCIe x16_3 споделя честотна лента с M.2 )
• 2 x PCIe 2.0 x1

• 1 x AAFP connector
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
• 1 x TPM connector(s)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x EZ XMP switch
• 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x CPU/DRAM overvoltage jumper(s)
• 1 x Clear CMOS jumper(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Water Pump header (4-pin)
• 1 x COM port header
• 1 x High AMP Fan header (4-pin)

Съхранение:

 Intel Core i7 процесори:

• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*1

Intel X99 чипсет:

• 1 x SATA Express порт , съвместим с 2 x SATA 6.0 Gb/s портове
• 8 x SATA 6Gb/s порта
• Поддържа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology 14 поддръжка
• Поддържа Intel Smart Response Technology( тази функция ще работи според зависимост инсталираният процесор)

Памет:

• 8 цокъла DDR4 DIMM, поддържащи до 128GB системна памет

• Поддръжка на модули памет DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
