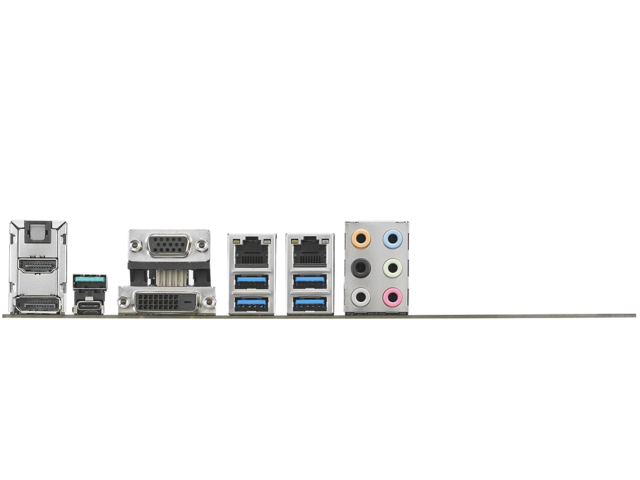

Интерфейси:

• 1 x DVI-D
• 1 x VGA
• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45)
• 4 x USB 3.1 Gen 1
• 1 x USB 3.1 Gen 2
• 1 x USB 3.1 USB Type-C
• 1 x Optical S/PDIF out
• 1 x 8-channel Audio I/O

Слотове за разширение:

Конектори:

• 1 x AAFP connector
• 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x M.2 Socket 3
• 1 x COM port(s) connector(s)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 1 x CPU fan with PWM control
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 8-pin EATX 12 V Power connector
• 1 x 6-pin EATX 12 V_1 Power connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x EPU switch(es)
• 1 x Power-on button(s)
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback^® button(s)
• 1 x 14-1 pin TPM connector

Съхранение:

Intel C236 чипсет:

• 8 x SATA 6Gb/s порта
• 2 x M.2 Socket 3, с M Key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE режими)
• Поддържа Raid 0, 1, 5, 10
• Поддържа Intel Rapid Storage Technology Enterprise

Памет:

• 4 x DIMM, Max. 64GB, DDR4 2133 MHz ECC, Non-ECC, небуферирана памет
• Двуканална ерхитектура на паметта
