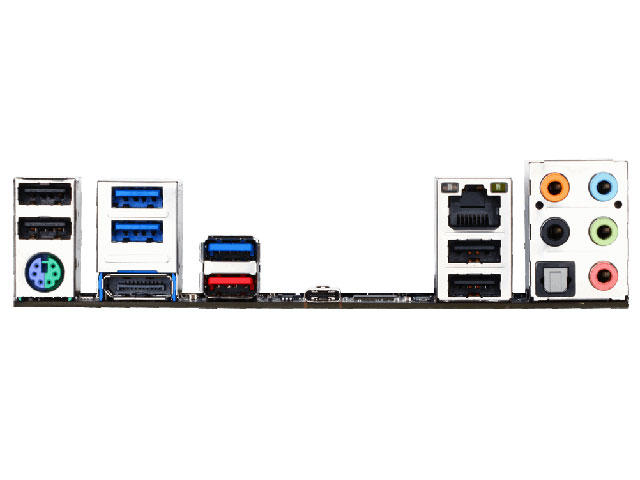

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DisplayPort In
• 1 x USB Type-, with USB 3.1 support
• 1 x USB 3.1 Type-A (red)
• 3 x USB 3.0/2.0
• 4 x USB 2.0/1.1
• 1 x RJ-45
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Слотове за разширение:

• 2 x PCI Express x16 слота, работещи в режим x16 (PCIE_1/PCIE_2)
• 2 x PCI Express x16 слота, работещи в режим x8 (PCIE_3/PCIE_4)
• 2 x PCI Express x1 слота

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x PCIe power connector
• 1 x M.2 Socket 3 connector
• 1 x SATA Express connector
• 10 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling fan header (CPU_OPT)
• 3 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 2 x USB 3.0/2.0 headers
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header
• 1 x Clear CMOS jumper

Съхранение:

• 1 x M.2 конектор (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2/x1 SSD support)
• 1 x SATA Express конектор
• 6 x SATA 6Gb/s конектора (SATA3 0~5)
• SATA конекторподдръжка на  RAID 0, RAID 1, RAID 5, и RAID 10

Памет:

• 8 цокъла DDR4 DIMM, поддържащи до 128 GB системна памет
• Поддържа модули памет DDR4 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
