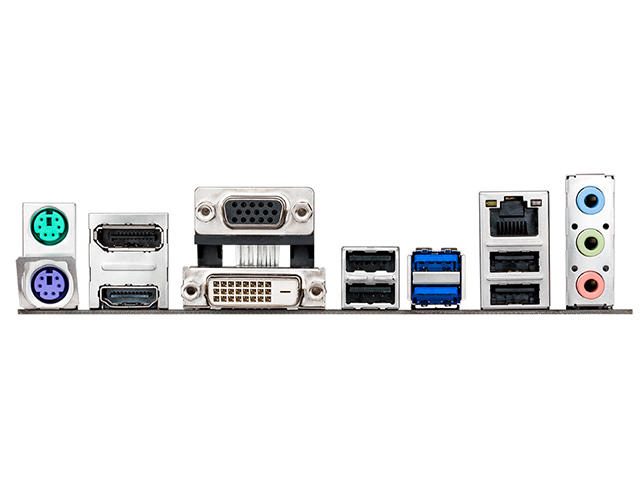

Интерфейси:

• 1x PS/2 клавиатура (лилав)

• 1x PS/2 мишка (зелен)

• 1x DVI-D

• 1x D-Sub

• 1x DisplayPort

• 1x HDMI

• 1x RJ-45

• 2x USB 3.0

• 4x USB 2.0

• 6x SATA 6Gb
• 3x аудио жакове

Слотове за разширение:

• 1x PCIe 3.0/2.0 x16 (yellow)

• 1x PCIe 2.0 x16 (x4 mode, dark brown)

• 2x PCI

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 ports

• 3x USB 2.0 connectors supports additional 6 USB 2.0 ports

• 6x SATA 6Gb/s connectors

• 1x Chassis Intrusion connector

• 1x Clear CMOS jumper

• 1x CPU Fan connector

• 2x Chassis Fan connectors

• 1x Front panel audio connector (AAFP)

• 1x System panel connector

• 1x Internal speaker connector

• 1x LPT1 header

• 2x COM ports connectors

• 1x 24-pin ATX Power connector

• 1x 8-pin ATX 12V Power connector

• 1x DIS ME jumper

• TPM IC onboard

Поддържа HDMI с максимална резолюция: 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Поддържа DisplayPort с максимална резолюция: 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
