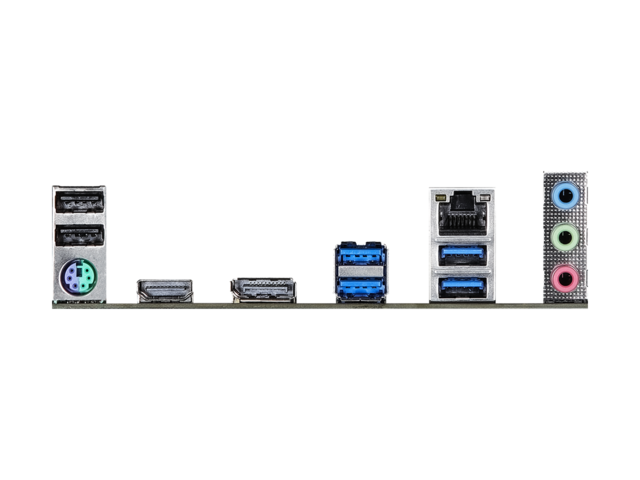

Интерфейси:

• 3 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 11th Gen Intel^® Core™ Processors
  - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))*
• 10th Gen Intel^® Core™ Processors
  - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))*
  - 2 x PCI Express 3.0 x1 Slots
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)

Конектори:

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers*
• 2 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel^® Core™ processors only)
• 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Памет:

• Двуканална архитектура на паметта
• 4 x DDR4 DIMM Slots
• 11th Gen Intel^® Core™ Processors поддържа DDR4 non-ECC, небуферирана до 4800+(OC)
• 10th Gen Intel^® Core™ Processors поддържа DDR4 non-ECC, небуферирана до 4600+(OC)
• Поддържа ECC UDIMM memory modules (operate in non-ECC mode)
• Макс. капацитет на системната памет: 128GB
• Поддържа Intel^® Extreme Memory Profile (XMP) 2.0
