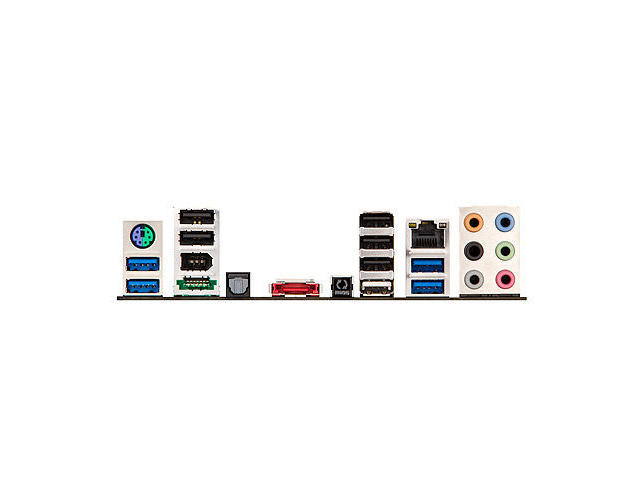

Интерфейси:

• 1x PS/2 клавиатура/мишка комбиниран
• 1x eSATA 6Gb/s
• 1x Power eSATA 6Gb/s
• 1x IEEE 1394a
• 1x LAN (RJ45) port(s)
• 4x USB 3.0
• 6x USB 2.0
• Поддържа Raid 0, 1, 5, 10
• 1x S/PDIF изход
• 6x аудио жакове
• 1x USB BIOS Flashback бутон

Слотове за разширение:

• 2x PCIe 3.0/2.0 x16 (dual x16)
• 1x PCIe 3.0/2.0 x16 (x8 mode)
• 2x PCIe 2.0 x1
• 1x PCI
• Поддържа NVIDIA Quad-GPU SLI технология
• Поддържа AMD Quad-GPU CrossFireX технология

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 port(s) (19-pin, moss green)
• 4x USB 2.0 connectors supports additional 8 USB 2.0 port(s)
• 1x COM port connector
• 4x SATA 6Gb connectors
• 4x SATA 3Gb connectors
• 1x CPU Fan connector (4 -pin)
• 4x Chassis Fan connectors (4 -pin)
• 1x Optional Fan connector (4 -pin)
• 1x Assistant Fan connector (4 -pin)
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel(s) (Q-Connector)
• 1x MemOK! button
