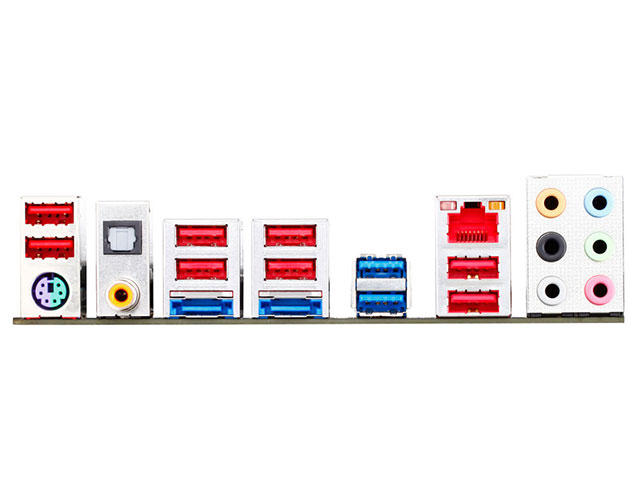

Интерфейси:

• 1x PS/2 клавиатура/мишка
• 1x optical S/PDIF
• 1x coaxial S/PDIF
• 8x USB 2.0/1.1
• 2x USB 3.0/2.0
• 2x eSATA 6Gb/s
• 2x SATA 6Gb/s (поддържа RAID 0, RAID 1, RAID 5, and RAID 10)
• 4x SATA 3Gb/s
• 1x RJ-45 port
• 6x аудио жакове (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Слотове за разширение:

• 2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 2x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
• 2x PCI Express x1 slots
• 1x PCI slot

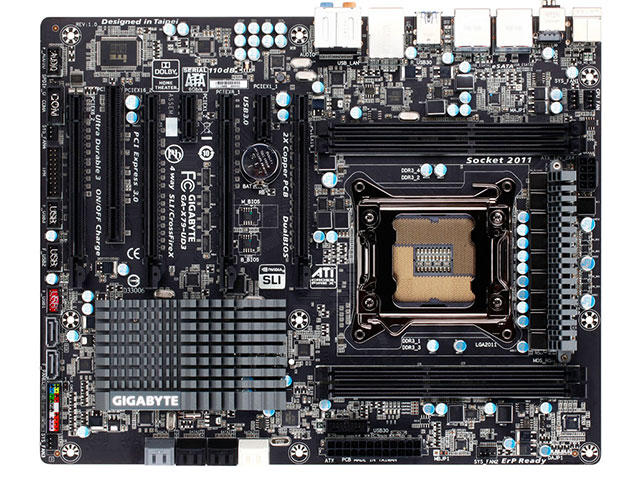

Конектори:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 4x SATA 3Gb/s connectors
• 1x CPU fan header
• 4x system fan headers
• 1x front panel header
• 1x front panel audio header
• 1x S/PDIF Out header
• 3x USB 2.0/1.1 headers
• 1x USB 3.0/2.0 header
• 1x serial port header
• 1x Clear CMOS jumper
• 1x Trusted Platform Module (TPM) header
