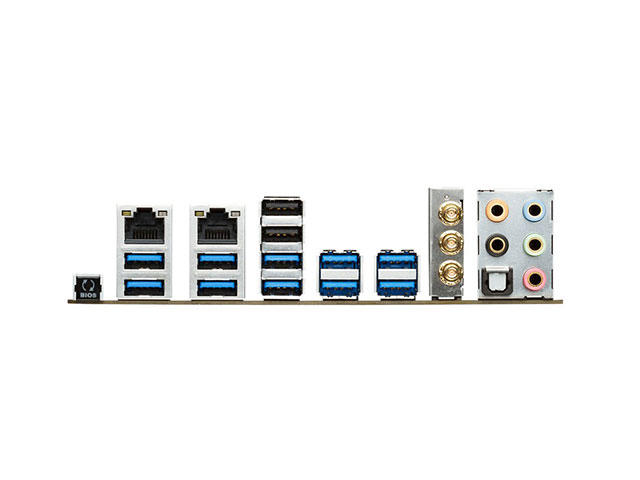

Интерфейси:

• 2x LAN (RJ45)
• 10x USB 3.0 (blue)
• 2x USB 2.0
• 1x Optical S/PDIF изход
• 5x аудио жакове
• 1x SATA Express port, съвместим с 2x SATA 6.0 Gb/s

• 8x SATA 6Gb/s
• Raid 0, 1, 5, 10
• 1x USB BIOS Flashback
• 1x ASUS Wi-Fi GO! module

Wi-Fi

• Wi-Fi 802.11a/b/g/n/ac
• Bluetooth v4.0
• Поддържа двубандова честота 2.4/5 GHz
• Поддържа ASUS Wi-Fi Go! Utility
• До 1300Mbps скорост на трансфер


Слотове за разширение:

            40-Lane CPU-

• 5x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode)
• 1x PCIe 2.0 x4 (max at x4 mode)

          28-Lane CPU-

• 3x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8)

• 2x PCIe 2.0 x16 (x1 mode)

• 1x PCIe 2.0 x4 (max at x4 mode)

Конектори:

• 1x AAFP connector
• 2x USB 3.0 connectors supports additional 4 USB 3.0 ports (19-pin)
• 2x USB 2.0 connectors supports additional 4 USB 2.0 ports
• 2x SATA Express connector: gray,
• 1x M.2 Socket 3 with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)
• 1x TPM connector
• 8x SATA 6Gb/s connectors
• 1x CPU Fan connector (1 x 4 -pin)
• 1x CPU OPT Fan connector (1 x 4 -pin)
• 4x Chassis Fan connectors (4 x 4 -pin)
• 1x S/PDIF out header
• 1x Thunderbolt header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x EZ XMP switch
• 1x System panel (Q-Connector)
• 1x Chassis Intrusion connector
• 1x DRCT header
• 1x MemOK! button
• 1x Thermal sensor connector
• 1x TPU switch
• 1x EPU switch
• 1x CPU/DRAM overvoltage jumper
• 1x Power-on button
• 1x Reset button
• 1x Clear CMOS button
• 1x 5-pin EXT_FAN(Extension Fan) connector
• 1x SLI/CFX switch (2/3-WAY adjustments)
