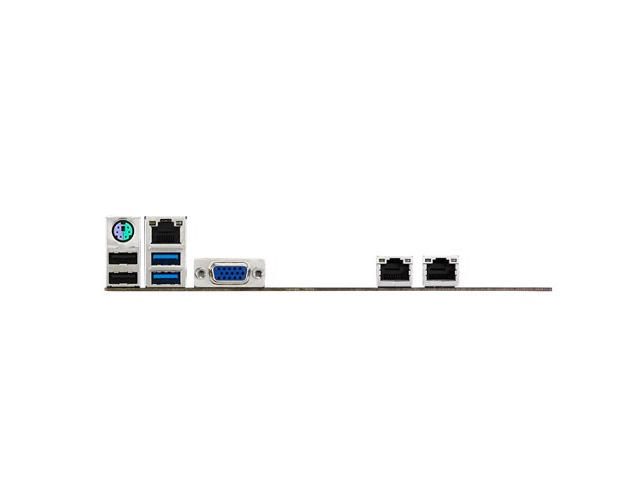

Интерфейси:

• 2 x USB 3.1 Gen 1
• 2 x USB 2.0
• 1 x VGA Port
• 2 x GbE LAN
• 1 x Mgmt LAN
• 1 x PS/2 комбиниран порт за мишка и клавиатура

Слотове за разширение:

• Total Slot : 6
• Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
• Slot Location 2 : PCI 32bit/33MHz
• Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
• Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
• Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
• Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch

Конектори:

• 1 x TPM header
• 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
• 1 x Management Connector , Onboard socket for optional management card
• 1 x USB 3.0 pin header , Up to 2 Devices
• 1 x USB 2.0 pin header , Up to 2 Devices
• 6 x Fan Header , 4pin
• 1 x SMBus
• 1 x Chassis Intruder
• 2 x Front LAN LED
• 1 x Serial Port Header
• 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB

Съхранение:

• SATA Controller:
  Intel C612
  10 x SATA3 6Gb/s ports или 9 x SATA3 6Gb/s ports + 1 x M.2 connector
  Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 1, 5, 10 )
  LSI MegaRAID (For Linux/Windows)
  (Поддържа Software RAID 0, 1, 10 )
• SAS Controller:
  ASUS PIKE II 3008 8-port SAS HBA card (опционален)
  ASUS PIKE II 3108 8-port SAS HW RAID card (опционален)
