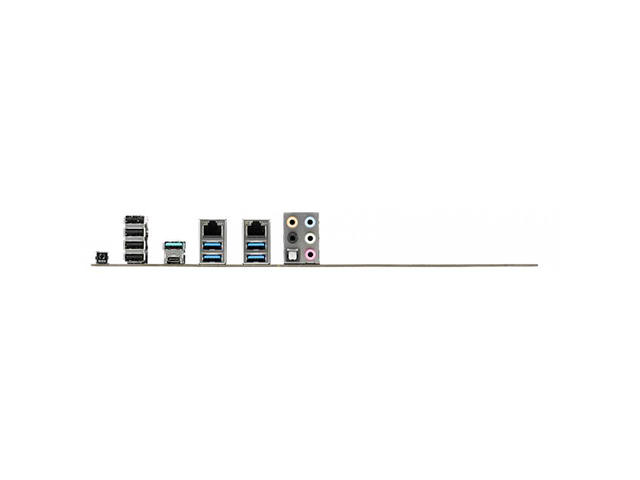

Интерфейси:

• 2 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 2 Type-A + USB Type-C^TM,
• 4 x USB 3.1 Gen 1 (blue) ,
• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 1 x USB BIOS Flashback Button(s)
• 1 x 8-channel Audio I/O

Слотове за разширение:

• 48-Lane CPU-
  2 x PCIe 3.0 x16 (x16 режим)
  2 x PCIe 3.0 x16 (единичен при x16, двоен при x8/x8)
  1 x PCIe 3.0 x4 (x4 режим)

Конектори:

• 1 x Aura Addressable Strip Header(s)
• 1 x AAFP connector
• 1 x Aura RGB Strip Headers
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x VROC_HW_Key
• 2 x CPU Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x U.2 connector
• 3 x System panel connector
• 1 x Front fan
• 1 x Rear fan
• 1 x COM port header
• 1 x Aspeed VGA header
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x CPU_OV jumper
• 1 x PUMP Fan connector
• 1x 6-pin ATX 12V Power connector

Съхранение:

• 1 x M.2 x4 Socket 3, с M key, тип 2242/2260/2280/22110 поддръжка на дискови устройства (PCIE 3.0 x 4 режим)
• 1 x M.2 x4 Socket 3, с M key, тип 2242/2260/2280 поддръжка на дискови устройства (SATA & PCIE режим)
• 6 x SATA 6Gb/s порта
• 1 x U.2 порт
• Поддръжка на Raid 0, 1, 10
• Поддръжка на Intel Rapid Storage Technology
• Поддържа Intel Virtual RAID (VROC) за CPU RAID

Памет:

• 8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM памет
• Четириканална архитектура на паметта
