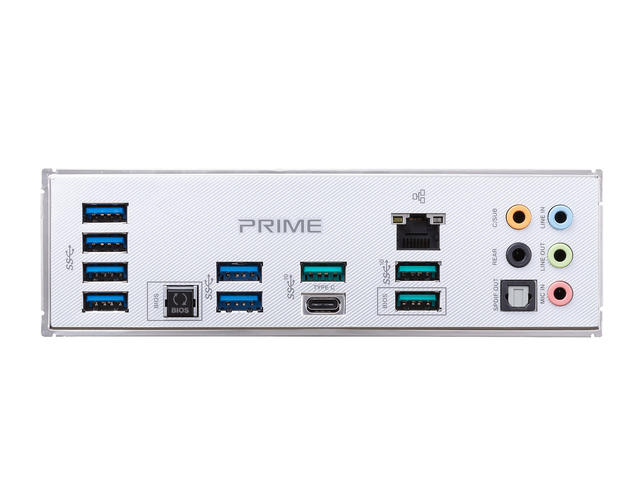

Интерфейси:

• 1 х LAN порт (RJ45)
• 4 х USB 3.2 Gen 2 (синьо) Тип-A
• 6 x USB 3.2 Gen 1 (blue)
• 1 x Optical S/PDIF out
• 5 x аудио жака
• 1 x USB BIOS FlashBack^™ Button(s)

Слотове за разширение:

• 3 x PCIe 4.0 x16 (x16/x16/x16)
• 1 x PCIe 4.0 (x4)

Конектори:

• 1 x Q_Code
• 2 x Aura RGB Strip Header(s)
• 2 x Addressable Gen 2 header(s)
• 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 with E key for Wi-Fi module
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x W_PUMP+ connector (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector) x With flexkey function
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x USB 3.2 Gen 2 front panel connector

Съхранение:

• 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
• 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 8 x SATA 6Gb/s порта
• поддържа Raid 0, 1, 5, 10
