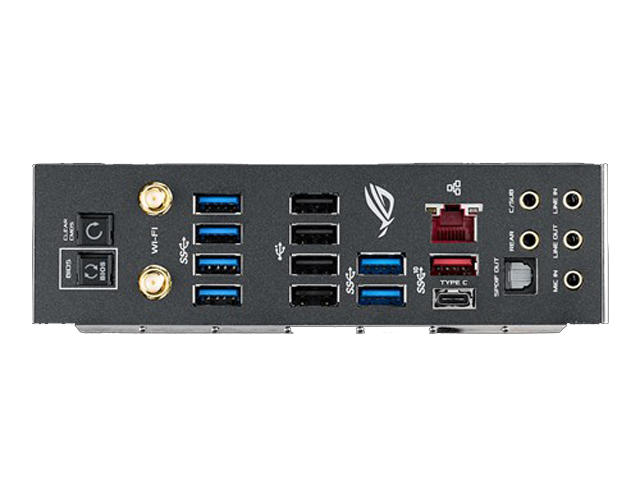

Интерфейси:

• 1 x LAN (RJ45)
• 1 x USB 3.1 USB Type-C
• 1 x USB 3.1 Type-A
• 6 x USB 3.1 Gen 1
• 4 x USB 2.0 (един порт може да се превключи на USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 1 x Clear CMOS бутон
• 1 x USB BIOS Flashback Button(
• 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac и Bluetooth v4.2 модул
• 5 x Позлатени аудио жакове

Слотове за разширение:

Конектори:

• 1 x Aura Addressable Strip Header(s)
• 2 x Aura RGB Strip Headers
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
• 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM header
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x W_PUMP+ connector (1 x 4 -pin)
• 1 x 8-pin EATX 12 V Power connector
• 1 x 4-pin EATX 12 V_1 Power connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x Slow Mode switch(es)
• 7 x ProbeIt Measurement Points
• 1 x EZ Plug connector(s) (4-pin Molex power connector)
• 1 x Reset button(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x LN2 Mode jumper(s)
• 1 x ROG extension (ROG_EXT) header(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x W_IN header
• 2 x W_OUT header
• 1 x W_FLOW header
• 1 x Thermal sensor connector
• 1 x Start button
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x 9 pin Monoblock sensor
• 8 x Radiator Fan Headers

Съхранение:

• Wi-Fi 802.11 a/b/g/n/ac
• Поддържа двуканална честота 2.4/5 GHz
• Bluetooth V4.2
