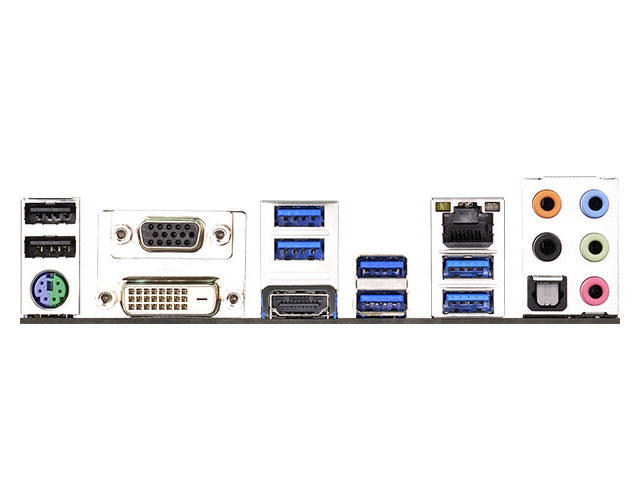

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 1x Optical SPDIF Out
• 1x USB 2.0
• 1x Fatal1ty Mouse Port (USB 2.0)
• 2x USB 3.0
• 4x USB 3.0
• 1x RJ-45 LAN
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 6x SATA3 6.0 Gb/s (RAID 0, RAID 1, RAID 5, RAID 10)
• 1x SATA Express 10 Gb/s
• 1x M.2 SSD (NGFF) Socket 3

Слотове за разширение:

• 3x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE6)
• 3x PCI Express 2.0 x1 Slots
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX и CrossFireX
• Поддържа NVIDIAQuad SLI и SLI

Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x HDD Saver Connector
• 1x PCIe Power Connector
• 1x Front Panel Audio Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Комплекта включва:

• 1x ASRock SLI_Bridge_2S Card
• Quick Installation Guide, Support CD, I/O Shield
• 4x SATA Data Cables
• 1x HDD Saver Cable
• 1x Screw for M.2_SSD (NGFF) Socket 3

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
