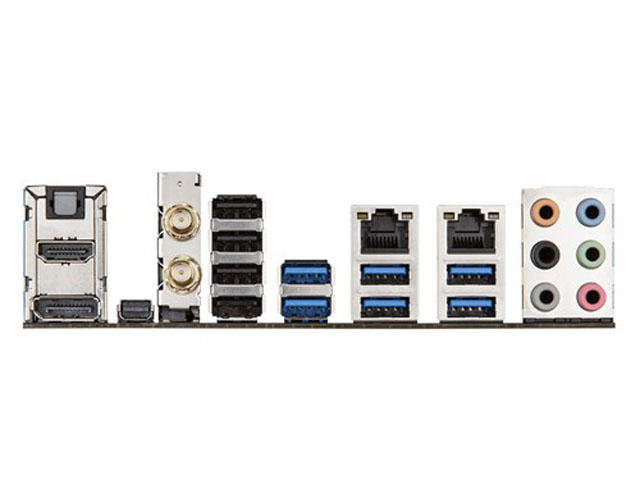

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45)
• 6 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)
• 1 x Mini DisplayPort(s)
• 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0

Слотове за разширение:

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1 x PCIe 2.0 x16 (max at x4 mode)(X16_3 The PCIe , USB3_E56 и SATAExpress_E1 съединители споделят една и съща честотна лента . Настройка по подразбиране за x16_3 на PCIe е в автоматичен режим , който оптимизира автоматично честотната лента на системата. Ако използвате две от тези конектори , системата автоматично изключва неизползваните конектори)
• 4 x PCIe 2.0 x1

Конектори:

• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA Express connector: black,
• 1 x M.2 Socket 3 for M Key, type 2260/2280 devices
• 1 x TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x EZ XMP switch
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x TPU switch(es)
• 1 x EPU switch(es)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback button(s)
• Bluetooth

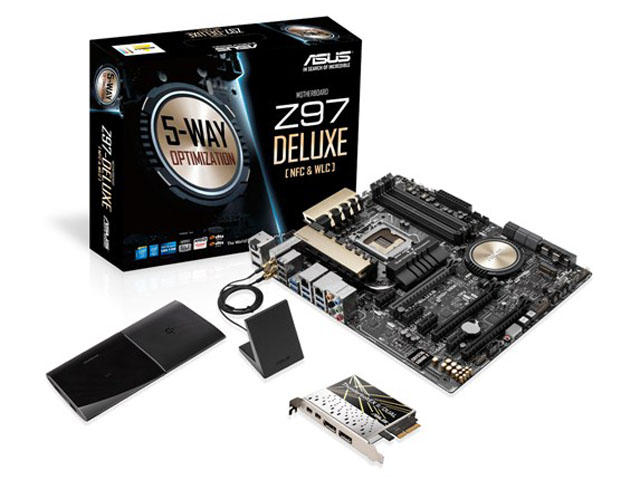

Комплектът включва:

• 6 x SATA 6Gb/s кабел
• 1 x NFC EXPRESS 2 box with 2 extra USB 3.0 ports + NFC EXPRESS tag + ASUS NFC EXPRESS utility

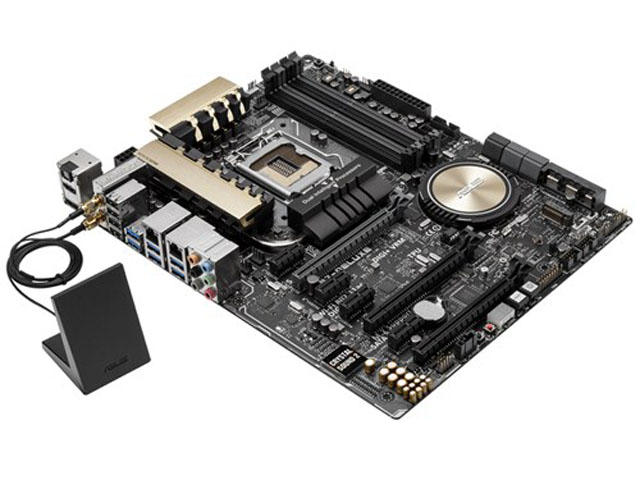

• 1 x ASUS 2T2R dual band Wi-Fi подвижна антена (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x external USB 3.0 кабел за NFC EXPRESS 2 (120см)
• 1 x Wireless Charger
• 1 x micro USB-to-USB кабел за Wireless Charger (120см)
• 1 x power adapter for Wireless Charger (5V DC, 2A, 10W)
• 1 x ThunderboltEX II/DUAL card(Ensure to install your ThunderboltEX II/DUAL card in PCIeX16_3 slot, and configure the bandwidth to x4 mode in BIOS for better performance if needed)
• 1 x ASUS TB header кабел (linked from an ASUS motherboard's TB header to ThunderboltEX II/DUAL card's TB header)
  1 x ASUS TB header convertor (9-pin to 5-pin)
• 1 x DisplayPort кабел ( Provides link from the motherboard's DisplayPort to the DisplayPort IN port on the ThunderboltEX II/DUAL card)
  1 x mini DisplayPort кабел ( Provides link from the motherboard's DisplayPort to the DisplayPort IN port on the ThunderboltEX II/DUAL card)
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (2 в 1)
