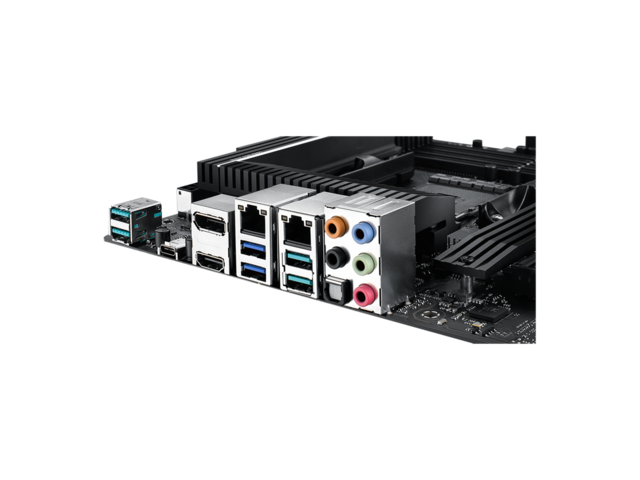

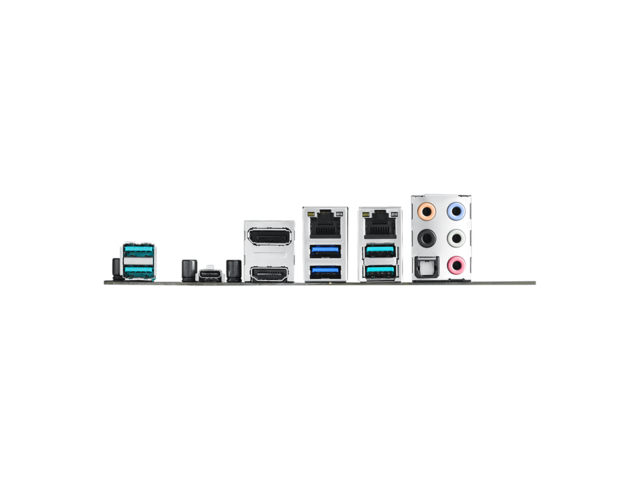

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45) port(s)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
• 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
• 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

Слотове за разширение:

• AMD Ryzen™ 5000 / 3000 серии:  2 x PCIe 4.0 x16 (x16 or dual x8)
• AMD Ryzen^TM 4000 G/ 2000 серии: 2 x PCIe 3.0 x16 (x16 or dual x8)
• AMD Ryzen^TM 3000 G/ 2000 G серии: 1 x PCIe 3.0 x16 (x8 mode)
• AMD X570 chipset: 1 x PCIe 4.0 x16 (x8 mode);  1 x PCIe 4.0 x1

Конектори:

• 1 x PCH_FAN
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x U.2 Connector (support U.2 NVMe device)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Съхранение:

• AMD Ryzen™ 5000 / 3000 серии:  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• AMD Ryzen^TM 4000 G/ 3000 G/ 2000 / 2000 G серии : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support;  1 x U.2 connector, support PCIe 3.0 x4 NVM Express Storage; 4 x SATA 6Gb/s port(s); Support Raid 0, 1, 10

Памет:

• 4x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
• Двуканална архитектура

• Поддръжката на ECC памет (режим ECC) варира в зависимост от процесора
