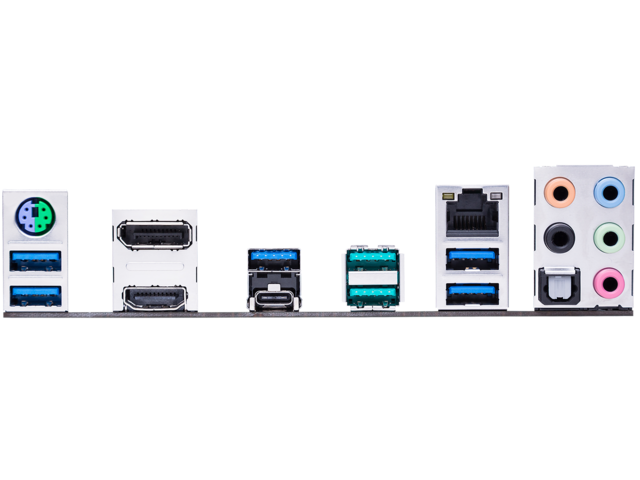

• 1 x PS/2 за клавиатура/ мишка
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 2 x USB 3.1 Type-A
• 1 x USB 3.0 Type-C
• 5 x USB 3.0
• 1 x Optical S/PDIF out
• 5 x аудио жака

AMD Ryzen процесори

• 2 x PCIe 3.0/2.0 x16 (x16 или двоен x8)

AMD 7th Generation A-series/Athlon процесори

• 1 x PCIe 3.0/2.0 x16 (x8 режим)

AMD X370 чипсет

• 1 x PCIe 2.0 x16 (макс. при режим x4)

AMD X370 чипсет

• 3 x PCIe 2.0 x1

• 1 x Aura RGB Strip Header
• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x W_PUMP+ connector (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector
• 1 x COM port header
• 1 x USB 3.1 front panel connector

Памет:

AMD Ryzen процесори

• 4 цокъла  DIMM, поддържащи до 64 GB системна памет 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz Non-ECC, небуферирана памет

AMD 7th Generation A-series/Athlon процесори

• 4 x цокъла  DIMM, поддържащи до 64GB, DDR4 2400/2133 MHz Non-ECC, небуферирана памет

Комплектът включва:

• ASUS Q-Shield
• 4 x SATA 6Gb/s кабела
• 1 x M.2 Screw Package
• 1 x SLI HB BRIDGE(2-WAY-M)
• 1 x Q-connector(s) (1 in 1)
