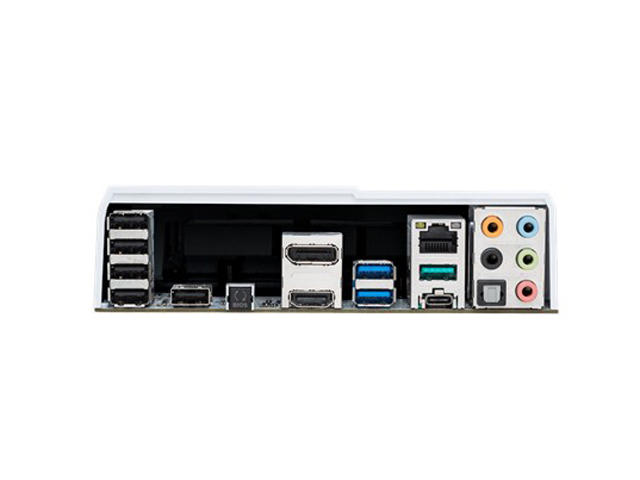

Интерфейси:

• 1 x DisplayPort


• 1 x HDMI
• 1 x LAN (RJ45)
• 1 x USB 3.1 Type-A
• 1 x USB 3.1 Type-C
• 4 x USB 2.0
• 2 x USB 3.0 (blue) (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 5 x Аудио жака
• 1 x USB BIOS Flashback Button(s)
• 1 x 8-channel Audio I/O
• 1 x TUF Detective USB port

Слотове за разширение:

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)


• 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
• 3 x PCIe 3.0/2.0 x1

Конектори:

• 1 x AAFP connector


• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA Express connector: , Compatible with 4 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 1 x CPU OPT Fan connector(s) (4 -pin)
• 6 x Chassis Fan connector(s) (4 -pin)
• 2 x Assistant Fan connector(s) (1 x 3 -pin, 1 x 4 -pin, [White])
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Chassis Intrusion connector(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 3 x Thermal sensor connector(s)
• 1 x CPU OV
• 1 x Clear CMOS jumper(s)
• 1 x Water Pump header (4-pin)
• 1 x 14-1 pin TPM connector

Съхранение:

Intel Z170 чипсет:

• 2 x SATA Express порта, съвместими с 4 x SATA 6.0 Gb/s порта
• 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
• 6 x SATA 6Gb/s порта
• Поддържа Raid 0, 1, 5, 10
• Поддържа Intel Rapid Storage Technology supports
• Поддържа Intel Smart Response Technology

Памет:

• 4 цокъла DDR4 DIMM , поддържащи до 64GB системна памет
• Поддръжка на модули памет DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

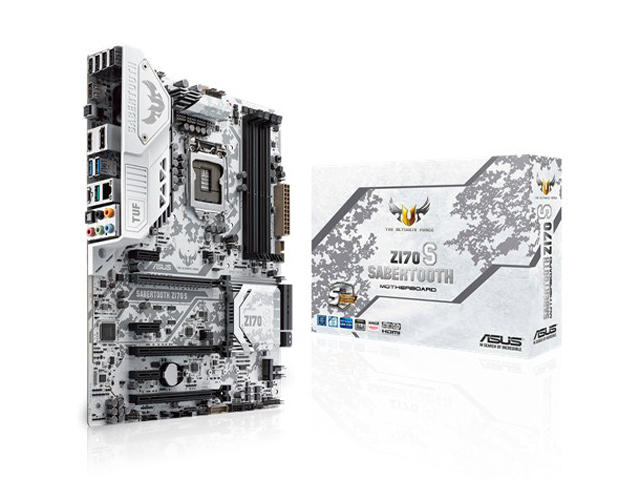

Комплектът включва:

• ASUS Q-Shield

• 4 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x CPU инструмент за инсталация
• 1 x SLI bridge(s)
• 1 x Q-конектор (1 в 1)
• 1 x STAY COOL BE TUF sticker(s)(gray)
  - 1 x back I/O dust frame
  - 1 x back I/O dust grid
