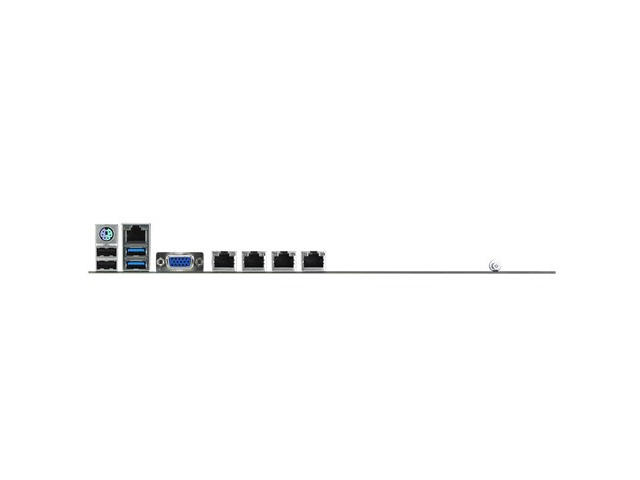

Интерфейси:

• 2 x USB 3.1 Gen 1
• 2 x USB 2.0
• 1 x VGA Port
• 4 x GbE LAN + 1 x Mgmt LAN
• 1 x PS/2 комбиниран порт за мишка и клавиатура

Слотове за разширение:

• Slot Location 1 : PCI 32bit/33MHz
• Slot Location 4 : PCI-E x8 (Gen3 X4 Link)
• Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
• Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
• Slot Location 7 : MIO Slot for Audio card
• Follow SSI Location#

Конектори:

• 1 x TPM header
• 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
• 1 x USB 3.0 pin header , Up to 2 Devices
• 2 x USB 2.0 pin header , Up to 4 Devices
• 2 x USB connector
• 6 x Fan Header , 4pin
• 1 x SMBus
• 1 x Chassis Intruder
• 4 x Front LAN LED
• 2 x Serial Port Header
• 1 x Device Power Connector
• 1 x VGA Header
• 2 x M.2 Connector
• 1 x Onboard header for optional management card

Съхранение:

• SATA Controller:
  Intel C236
  8 x SATA3 6Gb/s ports
  2 x M.2 connector (2280/2260/2242)
  Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
  (Поддържа Software RAID 0, 1, 5, 10 )
• SAS Controller:
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (опционален)
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (опционален)
