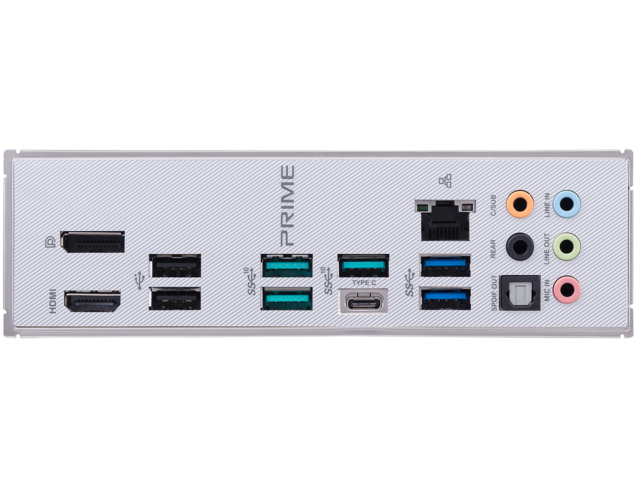

Интерфейси:

• 1 x Intel I225-V 2.5Gb Ethernet
• 1 x DisplayPort
• 1 x HDMI
• 4 x USB 3.2 Gen 2 (3x Type-A + 1x USB Type-C)
• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x аудио жака

Слотове за разширение:

• Intel 10-то поколение процесори
  2 x PCIe 3.0 x16 (x16 или двойно x8)
• Intel Z490 Chipset
  1 x PCIe 3.0 x16 (x4 режим)
  3 x PCIe 3.0 x1

Конектори:

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x AAFP connector
• 2 x Aura RGB Strip Headers
• 2 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
• 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 with E key for Wi-Fi module
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x CPU_OV jumper
• 1 x M.2 Fan Header

Съхранение:

• Intel Z490 Chipset:
  1 x M.2_1 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  1 x M.2_2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (PCIE 3.0 x 4 режим)
  6 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 5, 10
  Intel Rapid Storage Technology
  Intel Optane Memory Ready

Памет:

• 4 x DDR4 DIMM цокъла, поддържащи до 128GB системна памет
• Архитектура с две канални памети
• 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, небуферирана памет
•  Intel Extreme Memory Profile
