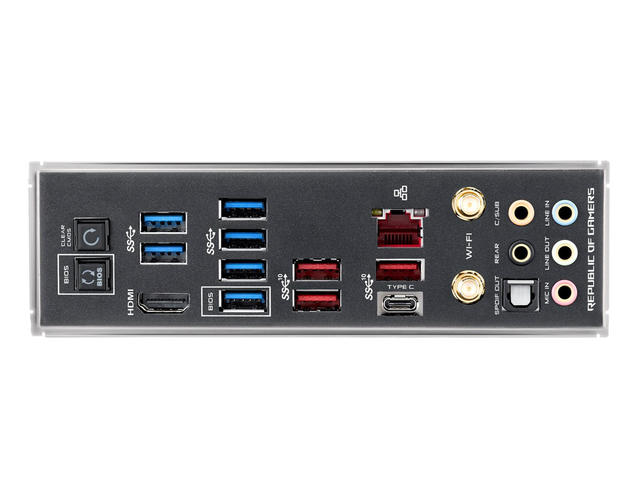

Интерфейси:

• 1 x HDMI
• 4 x USB 3.1 Gen 2
• 6 x USB 3.1 Gen 1
• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback Button(s)
• 1 x ASUS Wi-Fi Module
• 5 x позлатени аудио жака
• Anti-surge LAN (RJ45) port

Слотове за разширение:

• Socket 1151 за 9th / 8th Gen Intel Core, Pentium Gold и Celeron processors
  2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
• Intel Z390 Chipset
  1 x PCIe 3.0 x16 (max at x4 mode)
  1 x PCIe 3.0 x16

Конектори:

• 2 x Aura Addressable Strip Header(s)
• 2 x Aura RGB Strip Headers
• 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x Optional Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x H_AMP fan connector
• 1 x W_PUMP+ connector
• 1 x 4-pin EATX 12 V Power connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! II switch(es)
• 1 x Thermal sensor connector(s)
• 1 x Node Connector(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x ReTry button
• 1 x System panel connector
• 1 x T_Sensor Connector
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x USB 3.1 Gen 2 front panel connector
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x Start button
• 1 x Reset button
• 1 x Q-Code

Съхранение:

• Socket 1151 за 9th / 8th Gen Intel Core, Pentium Gold и Celeron processors:
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (PCIE 3.0 x 4 режим)
  6 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 5, 10
  Intel Optane Memory Ready

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддържани модули памет: 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, небуферирана памет
•  Поддържа Intel Extreme Memory Profile (XMP)
• Двуканална архитектура на паметта

Wireless Data Network:

• Intel Wireless-AC 9560
• Wi-Fi 802.11 b/g/n/ac
• Поддържа двубандова честота 2.4/5 GHz
• Поддържа канална лента: HT20/HT40/HT80/HT160
