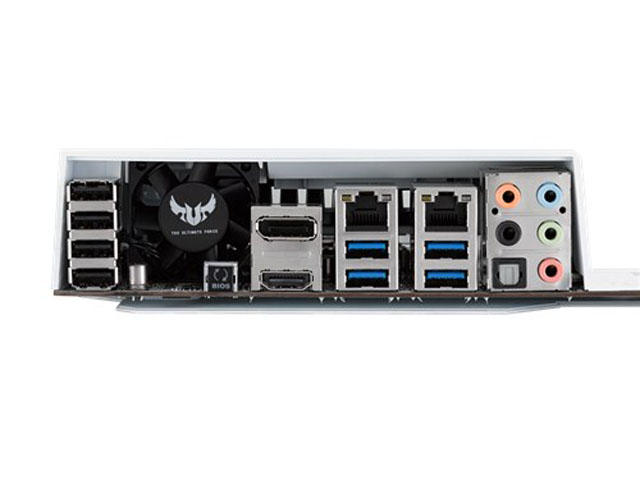

Интерфейси:
- 1 x DisplayPort
- 1 x HDMI
- 2 x LAN (RJ45)
- 4 x USB 3.0
- 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- 1 x USB BIOS Flashback Button(s)

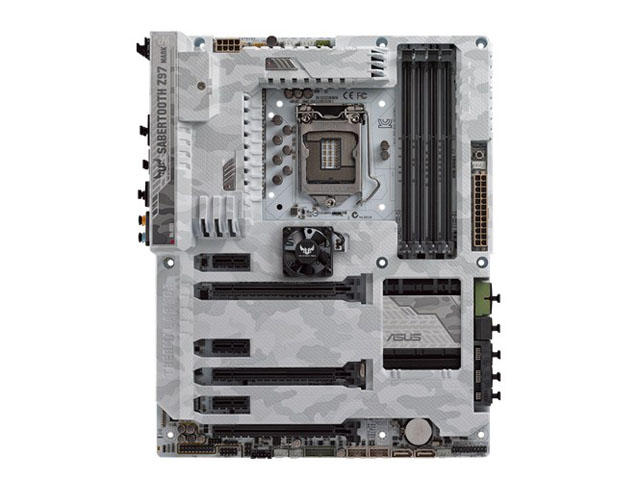

Слотове за разширение:
- 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
- 1 x PCIe 2.0 x16 (max at x4 mode, black)( PCIe 2.0 x16 слот споделя честотна лента с PCIe 2.0 x1_3 слот и USB3 E1 / 2 порта на гърба . Настройката по подразбиране на PCIe 2.0 x16 слота е в режим x1)
- 3 x PCIe x1
Конектори:
- 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin, moss green)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
- 1 x TPM header
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
- 4 x Chassis Fan connector(s) (4 x 4 -pin)
- 3 x Assistant Fan connector(s) (2 x 3 -pin, 1 x 4 -pin, [White])
- 1 x S/PDIF out header(s)
- 1 x Thunderbolt header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Q-Connector)
- 1 x DRCT header(s)
- 1 x MemOK! button(s)
- 3 x Thermal sensor connector(s)
- 1 x Clear CMOS jumper(s)

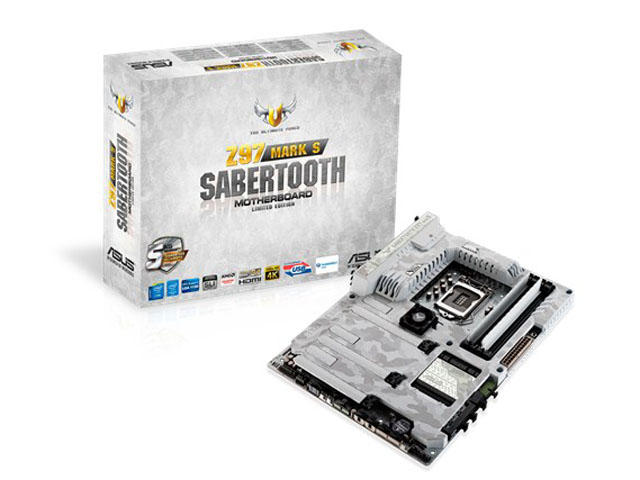

Комплектът включва:
- 4 x SATA 6Gb/s cable(s)
- 1 x SLI bridge(s)
- 1 x Q-connector(s) (2 in 1)
- 2 x Accessory Fan(s) ( 35 /40 mm )
- 1 x TUF Certification card(s)
- 1 x Accessory Package(s):
- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 3 x Thermistor cable(s)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
- 1 x connector dust cover collection (On board USB 3.0, DVI, HDMI, DP, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 8 x back I/O USB 2.0 connector dust cover(s)
- 7 x On board SATA connector dust cover(s)
- 1 x SATA Express conector dust cover(s)
- 5 x Audio connector dust cover(s)
