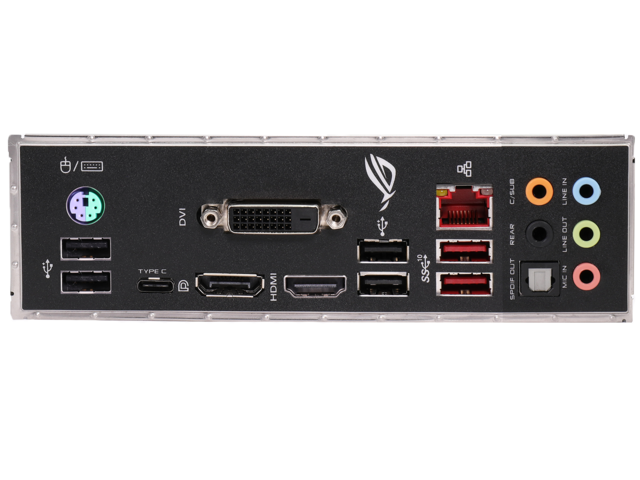

Интерфейси:

• 1 x PS/2 комбиниран порт за мишка и клавиатура
• 1 x DVI-D
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) p
• 1 x USB 3.1 Gen 2 (черен)USB Type-C
• 2 x USB 3.1 Gen 2 (червен)Type-A
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x аудио жака

Слотове за разширение:

Конектори:

• 1 x AAFP connector
• 1 x RGB Header(s)
• 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x M.2_FAN connector
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector
• 1 x COM port header
• 2 x 3D Mount screw port(s)

Съхранение:

• 1 x M.2 Socket 3, с M Key, тип 2242/2260/2280 поддържани дискови устройства (SATA & PCIE 3.0 x 2 режим)
• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (PCIE 3.0 x 4 режим)
• 6 x SATA 6Gb/s порта
• Поддържа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology
• Intel Optane Memory Ready
