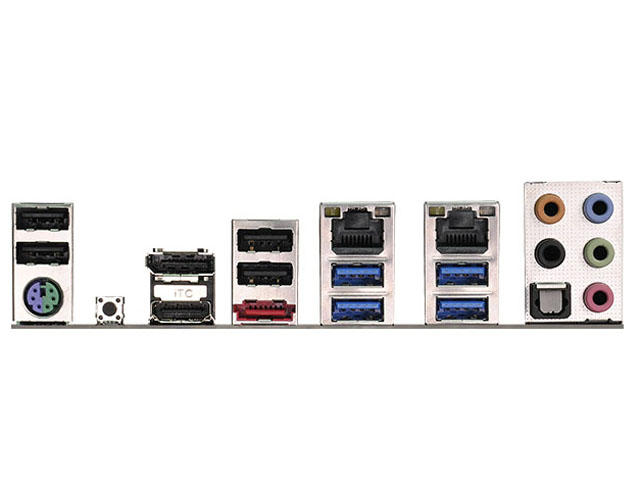

Интерфейси:

•  1 x PS/2 мишка/ клавиатура
• 1 x HDMI
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out
• 1 x eSATA Connector
• 3 x USB 2.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x RJ-45 LAN с LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE6)
• 1 x PCI Express 2.0 x16 Slot (PCIE1: x4 mode)
• 2 x PCI Express 2.0 x1 Slots
• 1 x mini-PCI Express Slot
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Поддържа NVIDIA Quad SLI and SLI

Конектори:

•  1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
   1 x Front Panel Audio Connector
• 1 x Thunderbolt AIC Connector ( необходима е актуалицация до последна версия на BIOS за да поддържа технологията Thunderbolt)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• 1 x BIOS Selection Switch

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors by Intel Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SATA3_A2 connector is shared with the eSATA port)
• 2 x SATA Express 10 Gb/s Connectors (SATAE_0 is shared with SATA3_1 and SATA3_2; SATAE_1 is shared with SATA3_4, SATA3_5 and M.2 Socket)
• 1 x eSATA Connector by ASMedia ASM1061, supports NCQ, AHCI and Hot Plug
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

( The M.2 Socket, SATAE_1, SATA3_4, SATA3_5 and  SATA Express share lanes. If either one of them is in use, the others will be disabled )

Аксесоари:

• 1 x ASRock SLI_Bridge_2S Card
•   I/O Shield
• 4 x SATA Data кабел
• 1 x HDD Saver кабел
• 1 x Screw for M.2_SSD (NGFF) Socket 3
• 1 x Screw for mini-PCIe Slot

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
