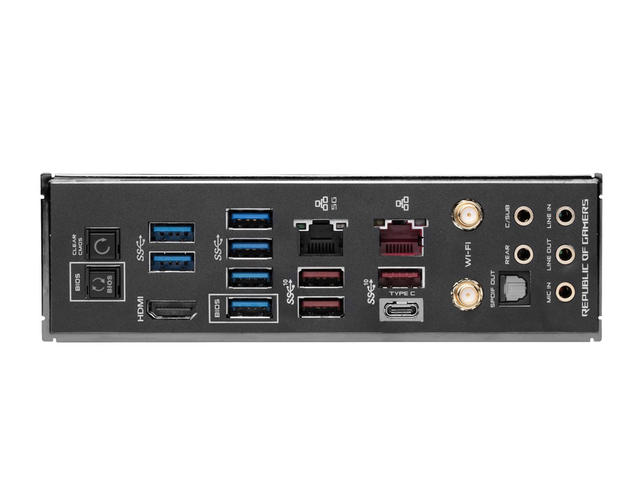

Интерфейси:

• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.1 Gen 2 (red) (1 x Type-C+3 x Type-A)
• 6 x USB 3.1 Gen 1
• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback^® Button(s)
• 1 x ASUS Wi-Fi Module
• 5 x LED-illuminated audio jacks
• 1 x AQC-111C 5G LAN port

Слотове за разширение:

• 2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
• 1 x PCIe 3.0 x16 (x4 режим, черен)
• 1 x PCIe 3.0 x1

Конектори:

• 1 x W_PUMP+ 1
• 1 x W_PUMP+ 2
• 1 x WB_SENSOR
• 2 x Aura Addressable Strip Header(s)
• 2 x Aura RGB Strip Headers
• 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin EATX 12V Power connectors
• 1 x 4-pin EZ_PLUG Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! II switch(es)
• 1 x Slow Mode switch(es)
• 9 x ProbeIt Measurement Points
• 1 x Reset button(s)
• 1 x BIOS Switch button(s)
• 1 x Node Connector(s)
• 1 x LN2 Mode jumper(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x System panel connector
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Thermal sensor connector
• 1 x Start button
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
• 1 x RSVD Switch
• 8 x Radiator Fan Headers

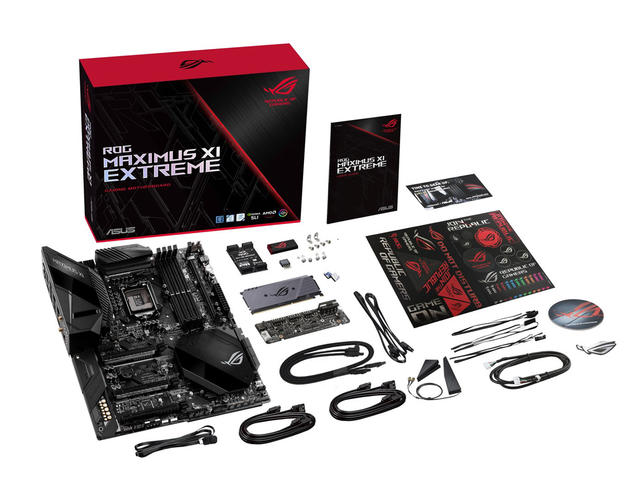

Комплектът включва:

• 1 x ROG logo plate sticker
• 4 x SATA 6Gb/s cable(s)
• 3 x M.2 Screw Package
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x Fan Extension Card (3 x 4-pin fan out)
• 1 x Fan Extension card screw pack
• 1 x Fan Extension card cable
• 1 x SLI HB BRIDGE(2-WAY-M)
• 1 x ROG big sticker
• 1 x Q-Connector
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 3 x Thermistor cable(s)
• 1 x USB drive with utilities and drivers
• 1 x ROG coaster(s)
• 2 x ROG weave SATA 6G cable
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 Pad for ROG DIMM.2

Wi-Fi/ Bluetooth:

• Wi-Fi 802.11 a/b/g/n/ac
• Поддържа двубандова честота 2.4/5 GHz
• Поддържа канална честотна лента HT20/HT40/HT80/HT160
• Bluetooth V5.0
