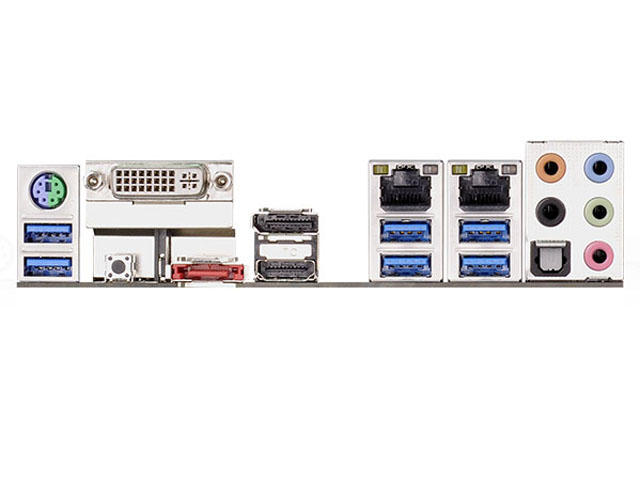

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-I
• 1 x HDMI
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out
• 1 x eSATA Connector
• 2 x USB 3.0 (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Intel^® Z97) (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x RJ-45 с with LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 слот (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))
• 1 x PCI Express 2.0 x16 слот (PCIE5: x2 mode)
• 2 x PCI Express 2.0 x1 слот
• 1 x mini-PCI Express слот
• 15μ Gold Contact in VGA PCIe слот (PCIE2)

(Ако M2_1 слот е зает , PCIE2 слот ще работи на режим x8 и PCIE4 слот ще работи на режим x4, мини PCI Express слот е споделен с PCIE3 SLO)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( Моля актуализирайте до последната версия на BIOS за поддръжка на Thunderbolt технологията)
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Vertical Type A USB 2.0
• 2 x USB 3.0 Headers (support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• 1 x BIOS Selection Switch

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors by Intel^® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SATA3_A4 connector is shared with the eSATA port)
• 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket (M2_2))*
• 1 x eSATA Connector by ASMedia ASM1061, supports NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x M.2_SSD (NGFF) Socket 3 (M2_2), supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

The M.2 Socket (M2_2), SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled

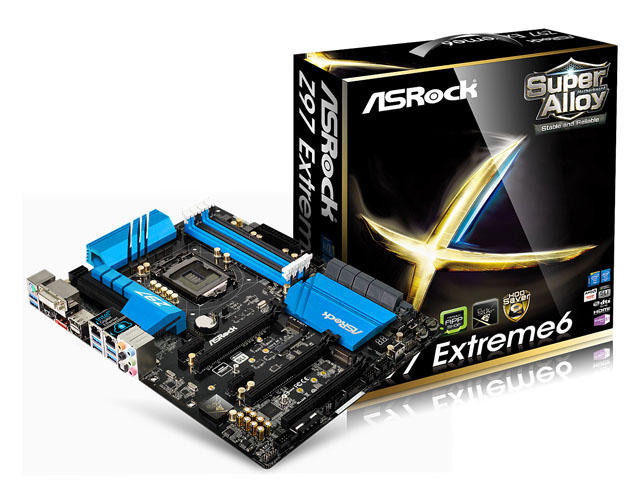

Комплекта съдържа:

• 1 x ASRock SLI_Bridge_2S Card
• I/O Shield
• 4 x SATA Data кабел
• 1 x HDD Saver кабел
• 2 x Screws for M.2 Sockets
• 1 x Screw for mini-PCIe Slot

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
