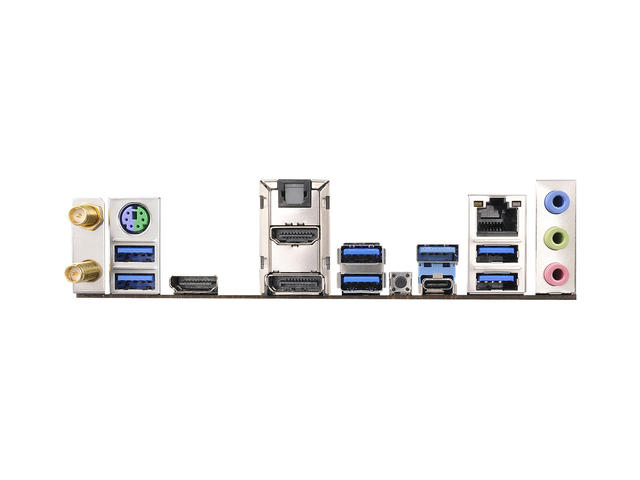

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 2x HDMI
• 1x DisplayPort 1.2
• 1x Optical SPDIF Out
• 1x USB 3.1
• 1x USB 3.1
• 5x USB 3.0
• 1x Fatal1ty Mouse Port (USB 3.0)
• 1x RJ-45 LAN
• 1x Clear CMOS Switch
• HD Audio Jacks: Line in / Front Speaker / Microphone
• 1x SATA Express 10 Gb/s Connector
• 1x Ultra M.2 Socket, поддържа - 2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Wireless LAN:

• Dual-Band - 2.4/5 GHz
• IEEE 802.11a/b/g/n/ac

Слотове за разширение:

• 1x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
• 1x Half-size Mini-PCI Express Slot: For WiFi + BT Module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Конектори:

• 1x Chassis Intrusion Header
• 1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x Front Panel Audio Connector
• 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 6x SATA3 6.0 Gb/s поддържа RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug

Памет:

• 2 цокъла DDR4 DIMM, поддържащи до 32 GB системна памет
• Поддръжка на модули памет DDR4 4000+(OC)/3866(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133non-ECC, небуферирана памет

*7ма генерация  Intel CPU поддържа DDR4 до 2400;6та генерация Intel CPU поддържа DDR4 до 2133.

Комплекта включва:

• Quick Installation Guide, Support CD, I/O Shield
• 2x SATA Data Cables
• 1x ASRock WiFi 2.4/5 GHz Antenna
• 1x Screw for M.2 Socket
