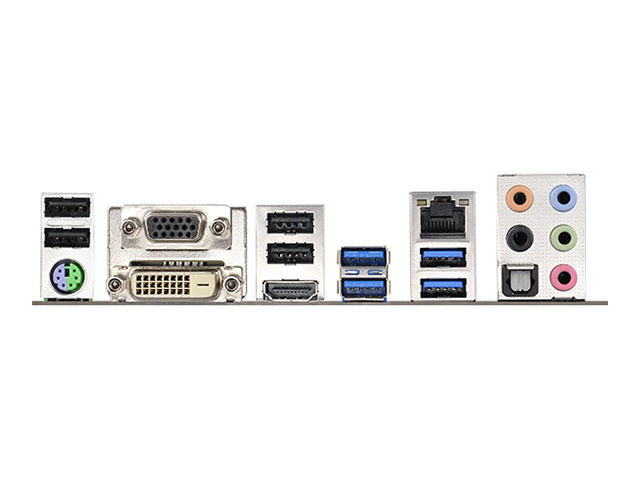

Интерфейси:

• 1x PS/2 Мишка/клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 1x Optical SPDIF Out
• 3x USB 2.0
• 1x Fatal1ty Mouse Port (USB 2.0)
• 4x USB 3.0
• 6x SATA III
• Поддържа RAID (RAID 0, RAID 1, RAID 5, RAID 10)
• 1x RJ-45 LAN (with LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 1x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
• 1x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)
• 2x PCI Express 2.0 x1 Slots
• 3x PCI Slots
• Supports AMD Quad CrossFireX and CrossFireX

Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x PCIe Power Connector
• 1x Front Panel Audio Connector
• 1x Thunderbolt™ AIC Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
