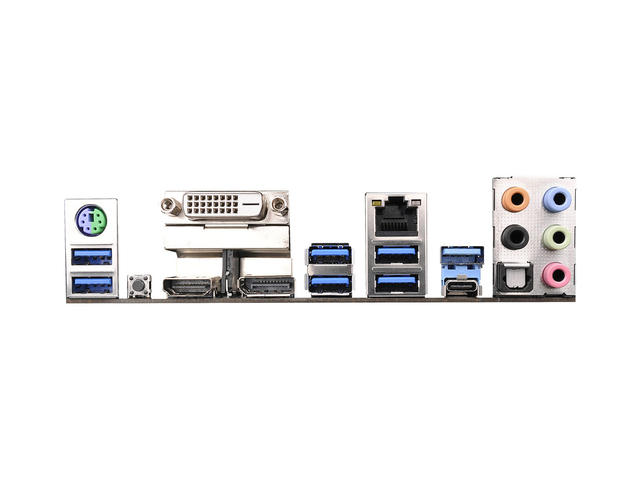

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x DVI-D
• 1x HDMI
• 1x DisplayPort 1.2
• 1x Optical SPDIF Out
• 1x USB 3.1 Type-A
• 1x USB 3.1 Type-C
• 6x USB 3.0
• 1x RJ-45 LAN
• 1x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 6x SATA3 6.0 Gb/s поддържа RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 и Intel Smart Response Technology), NCQ, AHCI and Hot Plug
• 3x SATA Express 10 Gb/s
• 1x Ultra M.2 Socket, поддържа 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)



Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))
• 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX и CrossFireX
• Поддържа NVIDIA Quad SLI и SLI
• 15μ Gold Contact in VGA PCIe Slot (PCIE2)



Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x Power LED and Speaker Header
• 2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x Front Panel Audio Connector
• 1x Thunderbolt™ AIC Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Dr. Debug with LED
• 1x Power Switch with LED
• 1x Reset Switch with LED



Комплекта включва:

• Quick Installation Guide, Support CD, I/O Shield
• 1x ASRock SLI_Bridge_2S Card
• 4x SATA Data Cables
• 1x Screw for M.2 Socket
