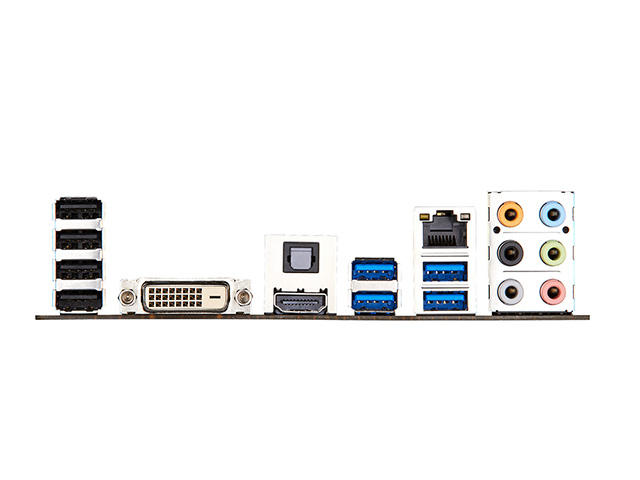

Интерфейси:

• 1x DVI-D

• 1x HDMI

• 1x RJ-45

• 4x USB 3.0 (blue)

• 4x USB 2.0
• 6x SATA 6Gb
• поддържа Raid 0, 1, 5, 10
• 1x S/PDIF изход

• 6x аудио жакове

Слотове за разширение:

• 2x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1x PCIe 2.0 x16 (x4 mode, black)
• 1x PCIe 2.0 x1
• Поддържа NVIDIA Quad-GPU SLI технология
• Поддържа AMD Quad-GPU CrossFireX технология

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 port(s) (19-pin, moss green)

• 2x USB 2.0 connectors support(s) additional 4 USB 2.0 port(s)

• 1x TPM header

• 6x SATA 6Gb/s connectors

• 1x CPU Fan connector (1 x 4 -pin)

• 1x CPU OPT Fan connector (1 x 4 -pin)

• 4x Chassis Fan connectors (4 x 4 -pin)

• 1x Assistant Fan connector (1 x 3 -pin)

• 1x S/PDIF out heade

• 1x 24-pin EATX Power connector

• 1x 8-pin ATX 12V Power connector

• 1x Front panel connector

• 1x Front panel audio connector (AAFP)

• 1x DirectKey Button

• 1x DRCT header

• 1x MemOK! button

• 3x Thermal sensor connectors

• 1x Clear CMOS jumper

• 1x USB BIOS Flashback button

Поддържа HDMI с максимална резолюция: 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Поддържа DisplayPort с максимална резолюция: 1920 x 1200 @ 60 Hz
