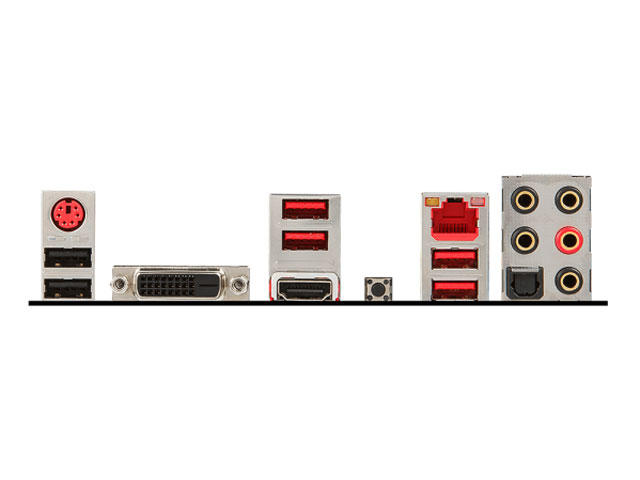

Интерфейси:

•   1 x PS/2 мишка/ клавиатура
•   2 x USB 2.0
•   2 x USB 3.1 Gen2
•   1 x DVI-D
•   1 x HDMI
•   1 x Clear CMOS button
•   1 x LAN (RJ45)
•   2 x USB 3.1 Gen1
•   1 x Optical S/PDIF OUT connector
•   5 x OFC audio jacks

Слотове за разширение:

•   2 x PCIe 3.0 x16 slots (support x16, x16/ x4 modes)
•   3 x PCIe 3.0 x1 slots
•   2 x PCI slots
•   1x M.2 Wi-Fi module slot (Key E)

( не поддържа PCI wake-up на S3,S4 и S5)

Конектори:

•   1 x 24-pin ATX main power connector
•   1 x 8-pin ATX 12V power connector
•   6 x SATA 6Gb/s connectors
•   1 x USB 2.0 connector (support additional 2 USB 2.0 ports)
•   2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
•   2 x 4-pin CPU fan connectors
•   3 x 4-pin system fan connectors
•   1 x Front panel audio connector
•   2 x Front panel connectors
•   1 x TPM module connector
•   1 x Chassis Intrusion connector
•   1 x Serial port connector
•   1 x Parallel port connector
•   1 x Clear CMOS jumper
