Интерфейси:

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
• 2 x USB 3.1 (teal blue)
• 2 x USB 3.0 (blue)
• 2 x USB 2.0
• 3 x Audio jack(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
• 1 x PCIe 3.0/2.0 x16 (x4 mode, black)
• 2 x PCIe 3.0/2.0 x1
• 2 x PCI

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 2 x M.2 Socket 3
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x Serial Port header
• 1 x System panel connector
• 1 x AIO PUMP Header

Съхранение:

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s port(s)
• Intel Optane Memory Ready

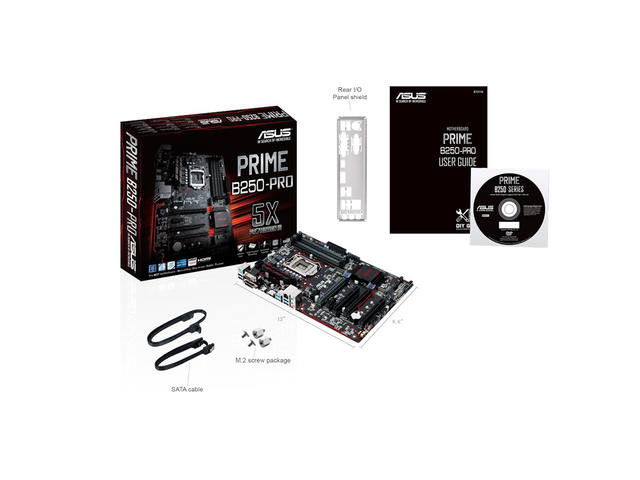

Комплектът включва:

• ASUS Q-Shield
• 2 x SATA 6Gb/s cable(s)
• 2 x M.2 screws
• 1 x Supporting DVD

Аудио:

• Realtek ALC887 8-Channel High Definition Audio CODEC
