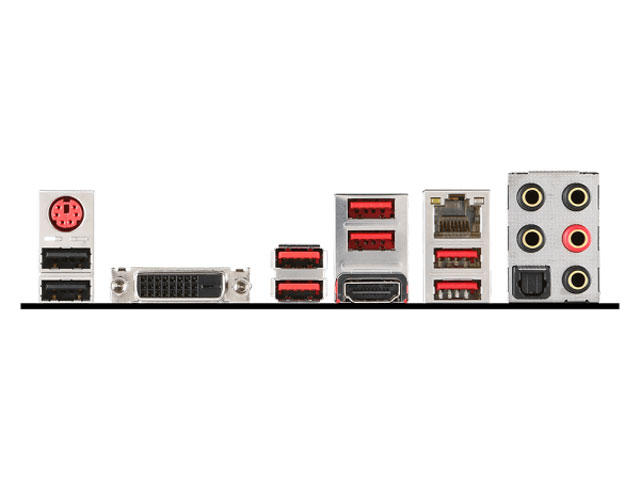

Интерфейси:

•   1 x PS/2 мишка/ клавиатура
•   2 x USB 2.0
•   1 x DVI-D
•   2 x USB 3.1 Gen2
•   4 x USB 3.1 Gen1
•   1 x HDMI
•   1 x LAN (RJ45)
•   1 x Optical S/PDIF OUT connector
•   5 x OFC audio jacks

Слотове за разширение:

•   3 x PCIe 3.0 x16 слот (поддържа x16/x0/x4 or x8/x8/x4 modes)
•   3 x PCIe 3.0 x1 слот
•   1 x PCI слот

Конектори:

•   1 x 24-pin ATX main power connector
•   1 x 8-pin ATX 12V power connector
•   6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)
•   1 x SATAe connector
•   2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
•   1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
•   2 x 4-pin CPU fan connectors
•   3 x 4-pin system fan connectors
•   1 x Front panel audio connector
•   2 x Front panel connectors
•   1 x TPM module connector
•   1 x Chassis Intrusion connector
•   1 x Clear CMOS jumper
