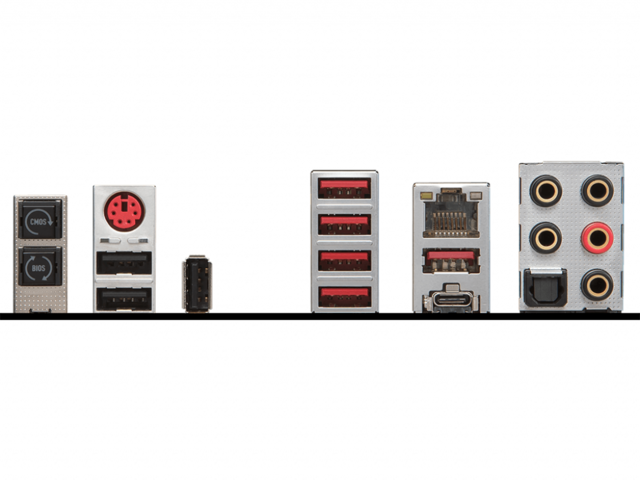

1. Clear CMOS Button
2. Keyboard / Mouse
3. Intel^® Gigabit LAN
4. Golden Audio Connectors
5. BIOS Flashback Button
6. USB 2.0
7. USB 2.0 / BIOS Flashback+
8. USB 3.1 Gen1
9. USB 3.1 Gen2 Type-A/C
10. Optical S/PDIF-Out

• 4 x PCIe 3.0 x16 slots
  • Support x16/ x4*/ x16/ x8 mode with the 44-lane CPU.¹
  • Support x16/ x4*/ x8/ x4 modes with the 28-lane CPU.¹
  • Support x8/ x4*/ x8/ x0, x8/ x4*/ x4/ x4 modes with the 16-lane CPU.¹
• 2 x PCIe 3.0 x1 slots

1. The PCI_E3 lanes are supported by PCH.

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 8 x SATA 6Gb/s connectors
• 3 x M.2 slots (Key M x2, Key E x1)
• 1 x U.2 port
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 1 x USB 3.1 Gen2 Type-C port
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Power button
• 1 x Reset button
• 1 x Multi-BIOS switch
• 1 x RGB LED connector
• 1 x Virtual RAID on CPU connector
• 1 x Thunderbolt Add-on Card Connecto

Intel^® X299 Chipset

• 8 x SATA 6Gb/s ports¹
• 2 x M.2 slots (Key M)¹
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • M2_1 slot supports 2242/ 2260 /2280 storage devices
  • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
  • Intel^® Optane™ Memory Ready²
• 1 x U.2 port¹
  • Supports PCIe 3.0 x4 NVMe storage
• Supports Intel^® Smart Response Technology

1. PCI_E3 slot, M.2 slots, U.2 port and SATA ports share the same bandwidth. Please refer to manual for PCI_E3/ U.2/ M.2/ SATA Combination table.
2. Please refer to manual for Intel^® Optane™ Memory Configuration.

Памет:

• 8 цокъла  DIMM, поддържащи до 128GB системна памет , DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz
