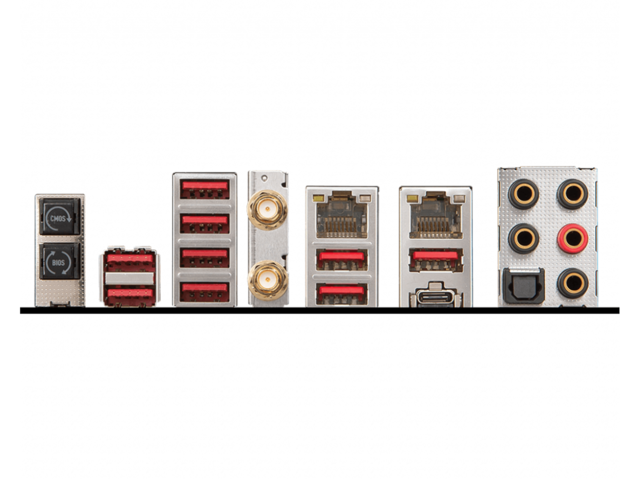

Интерфейси:
- 1х Clear CMOS Button
- 2х USB 3.1 Gen1 Ports
- 4х USB 3.1 Gen1 Ports
- 2х Intel WiFi/ Bluetooth Module
- 2х Dual Intel LAN Ports
- 5х HD Audio Connectors
- 1х BIOS FLASHBACK+
- 2х USB 3.1 Gen1 Ports
- 1х AMD Turbo USB 3.1 Gen 1 Type A + C
- 1х Optical S/PDIF-Out
Слотове за разширение:
- 2x PCIe 3.0 x16 слота (PCIE_1, PCIE_4)
- 2x PCIe 3.0 x8 слота (PCIE_3, PCIE_5)
- 1x PCIE 2.0 x1 слот
Конектори:
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connector
- 1x flat 4-pin ATX 12V power connector
- 8x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1x USB 3.1 Gen2 Type-C port
- 1x 4-pin CPU fan connector
- 1x 4-pin Water Pump connector
- 5x 4-pin system fan connectors
- 3x 4-pin extend fan connectors
- 2x Front panel connectors
- 1x Front panel audio connector
- 2x 5050 RGB LED strip 12V connector (JRGB1~2)
- 1x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
- 1x CORSAIR connector (JCORSAIR1)
- 1x TPM module connector
- 3x 2-pin Thermal Sensors connectors
Съхранение:
-
AMD X399 Chipset
-
AMD CPU
- 3 x M.2 порта (Key M)
- Поддържа до PCIe 3.0 x4 и SATA 6Gb/s
- M2_1, M2_3 слота поддържащи 2242/ 2260 /2280 дискови устройства
- M2_2 слот поддържащ 2242/ 2260 /2280/ 22110 дискови устройства
Памет:
- 8 цокъла DDR4, поддържащи до 128GB системна памет
- Поддръжка на модули памет DDR4 3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400/ 2133 MHz
Безжична мрежа и Блутуут:
- Intel Wireless-AC 9260 card
- Поддържа Wi-Fi 802.11 ac, 2x2, Dual Band, (2.4GHz, 5GHz) до 1.73 Gbps скорост
- Поддържа Bluetooth 5
