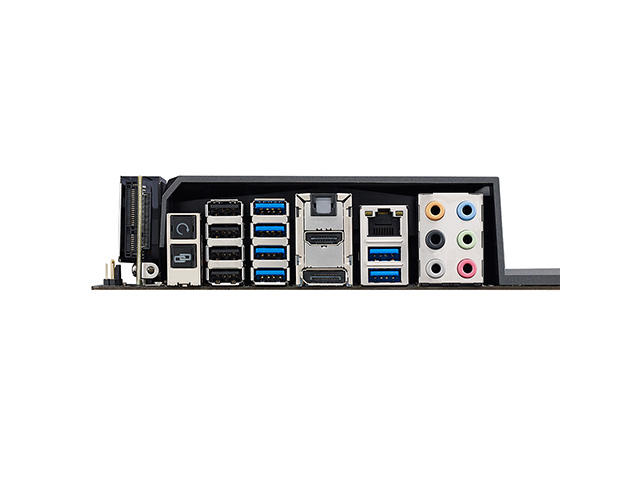

Интерфейси:

• 1x DisplayPort
• 1x HDMI
• 1x LAN (RJ45)
• 6x USB 3.0 (blue)
• 4x USB 2.0
• 1x Optical S/PDIF out
• 6x аудио жакове
• 1x Clear CMOS button
• 1x ROG Connect On/ Off switch
• Поддържа Raid 0, 1, 5, 10
• 6x SATA 6Gb

Слотове за разширение:

• 3x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4)
• 1x mini-PCIe 2.0 x1
• 3x PCIe 2.0 x1
• Поддържа NVIDIA Quad-GPU SLI технология
• Поддържа AMD Quad-GPU CrossFireX технология

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 ports
• 2x USB 2.0 connectors supports additional 4 USB 2.0 ports
• 1x TPM connector
• 10x SATA 6Gb/s connectors
• 1x CPU Fan connector
• 1x CPU OPT Fan connector
• 3x Chassis Fan connectors
• 3x Optional Fan connectors
• 1x S/PDIF out headers
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x 4-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel
• 1x DirectKey Button
• 1x DRCT header
• 1x MemOK! button
• 10x ProbeIt Measurement Points
• 3x Thermal sensor connectors
• 1x Power-on button
• 1x Reset button
• 1x FastBoot switch
• 1x ROG extension (ROG_EXT) header
• 1x mPCIe Combo II connector

Wireless Data Network:

• Wi-Fi 802.11a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz

Bluetooth:

• Bluetooth V4.0
• Bluetooth V3.0+HS
