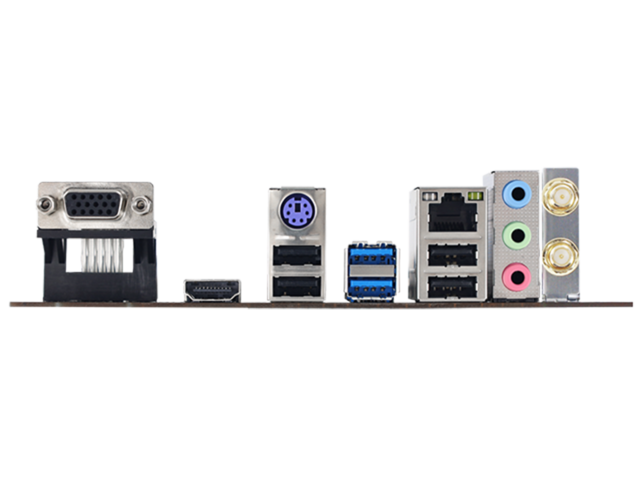

Интерфейс:

• 2 x WIFI Antenna Ports
• 1 x PS/2 Keyboard / Mouse
• 1 x HDMI Port
• 1 x VGA Port
• 2 x USB 3.2 (Gen1) Ports
• 4 x USB 2.0 Port
• 1 x LAN port
• 3 x Audio Jack

Памет:

• Поддържа двуканален DDR4 3333+(OC)/ 3200/ 2933/ 2666/ 2400/ 2133/ 1866
• 2 x DDR4 DIMM слот за памет, макс. Поддържа до 64 GB памет
• Всеки DIMM поддържа не-ECC 4/8/16/32GB DDR4 модул

Слотове за разширение:

• 1 x PCIe 3.0 x1 Slot
• 1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)

Съхранение:

• 4 x SATA III конектори (6Gb/s)
• 1 x M.2 (M ключ) гнездо:
  • Поддържа M.2 Type 2242/ 2260/ 2280 SSD модул
  • Поддържа PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD

Конектори:

• 4 x SATA III Connectors (6Gb/s)

• 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

• 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

• 1 x 8-Pin Power Connector

• 1 x 24-Pin Power Connector

• 1 x CPU Fan Connector

• 1 x System Fan Connector

• 1 x Front Panel Header

• 1 x Front Audio Header

• 1 x Internal Stereo Speaker Header

• 1 x Clear CMOS Header

• 1 x COM Port Header
