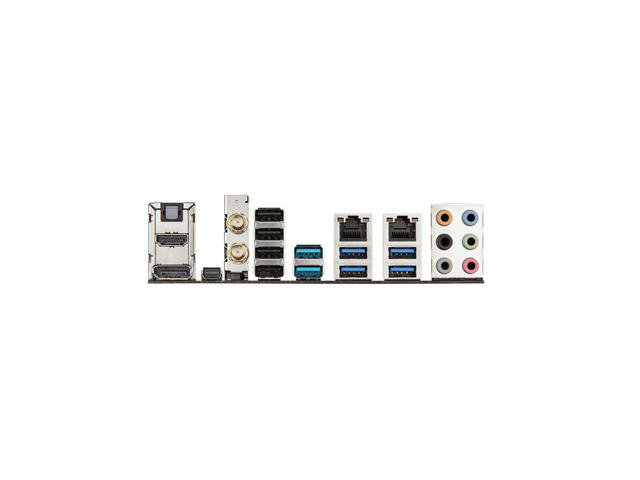

Интерфейси:

• 1x DisplayPort

• 1x HDMI

• 2x LAN (RJ45) port(s)

• 6x USB 3.0 (blue)

• 4x USB 2.0

• 1x Optical S/PDIF out

• 6x Audio jack(s)

• 1x Mini DisplayPort(s)

• 1x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0)

Слотове за разширение:

• 2x PCIe 3.0/2.0 x16 (x16 or dual x8)

• 1x PCIe 2.0 x16 (max at x4 mode) *1

• 4x PCIe 2.0 x1

Конектори:

• 2x USB 3.0 connectors supports additional 4 USB 3.0 ports (19-pin)
• 2x USB 2.0 connectors supports additional 4 USB 2.0 ports
• 2x SATA Express connector: black, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
• 1x M.2 Socket 3 for M Key, type 2260/2280 devices
• 1x TPM header
• 6x SATA 6Gb/s connectors
• 1x CPU Fan connector (1 x 4 -pin)
• 1x CPU OPT Fan connector (1 x 4 -pin)
• 4x Chassis Fan connectors (4 x 4 -pin)
• 1x S/PDIF out header
• 1x Thunderbolt header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x EZ XMP switch
• 1x Front panel audio connector (AAFP)
• 1x System panel (Q-Connector)
• 1x DRCT header
• 1x MemOK! button
• 1x TPU switch
• 1x EPU switch
• 1x Power-on button
• 1x Reset button
• 1x Clear CMOS buttоn
• 1x USB BIOS Flashback button

Поддържа HDMI с макс. резолюция 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Поддържа DisplayPort с макс. резолюция 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Поддържа Mini DisplayPort с максимална резолюция 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
