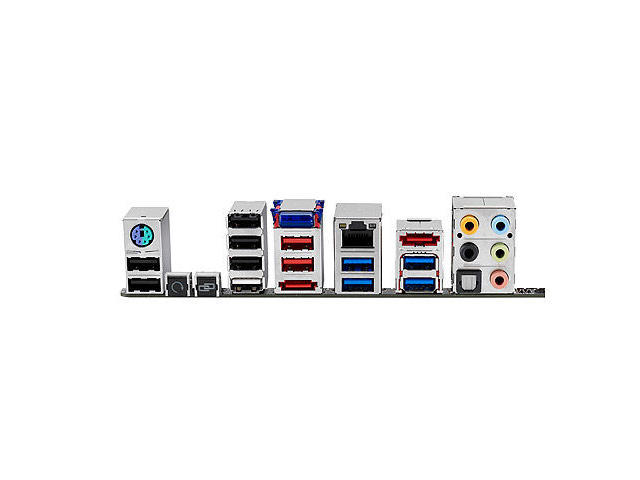

Интерфейси:

• 1x PS/2 клавиатура/мишка комбиниран
• 2x eSATA 6Gb/s

• Поддържа Raid 0, 1, 5, 10
• 1x Bluetooth
• 1x RJ-45

• 4x USB 3.0

• 8x USB 2.0 (one port can be switched to ROG Connect)

• 1x S/PDIF изход

• 5x аудио жакове

• 1x Clear CMOS бутон

• 1x ROG Connect On/ Off switch
• 1x RC Bluetooth switch

Слотове за разширение:

• 4x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red)
• 1x PCIe 3.0/2.0 x16 (x8 mode, gray)
• 1x PCIe 2.0 x1
• Поддържа NVIDIA Quad-GPU SLI технология
• Поддържа AMD Quad-GPU CrossFireX технология

Конектори:

• 2x USB 3.0 connectors supports additional 4 USB 3.0 ports
• 2x USB 2.0 connectors supports additional 4 USB 2.0 ports
• 4x SATA 6Gb/s connector
• 4x SATA 3Gb/s connectors
• 2x CPU Fan connectors
• 3x Chassis Fan connectors
• 3x Optional Fan connectors
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x 4-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel

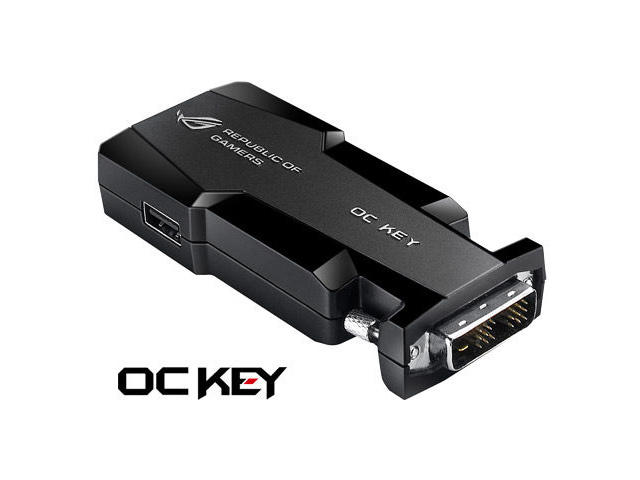

• 1x OC Key header
• 1x OT header
• 2x Subzero Sense connectors
• 1x Slow Mode switch
• 7x ProbeIt Measurement Points
• 3x Thermal sensor connectors
• 1x LN2 Mode header
• 1x Q Reset switch
• 2x EZ Plug connectors (4-pin in white for memory DIMMs; 6-pin in black for PCIe slots)

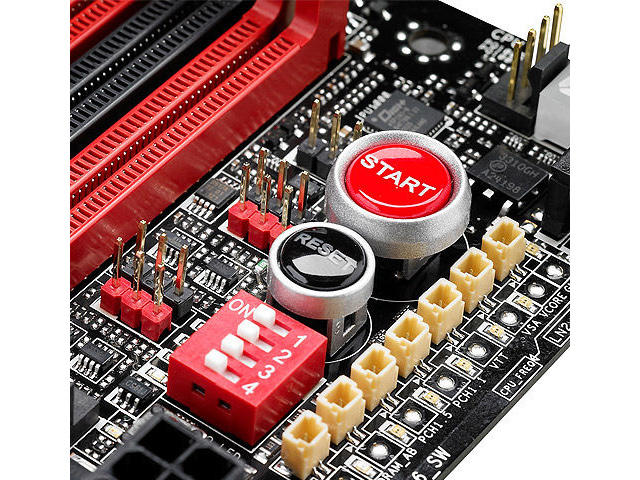

• 1x Power-on button
• 1x Reset button
• 1x Go Button
• 1x BIOS Switch button
