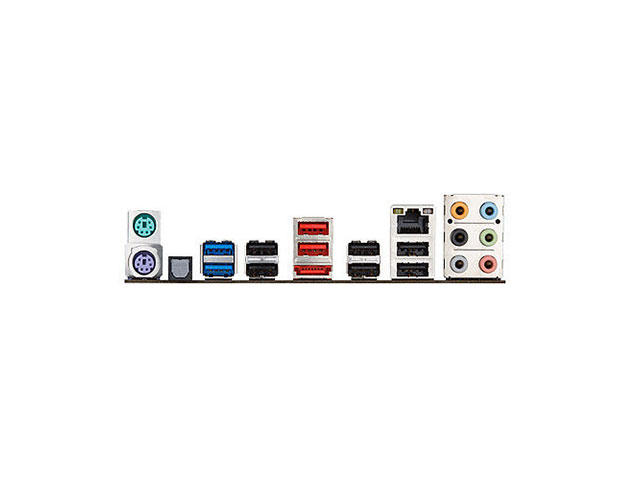

Интерфейси:

• 1x PS/2 клавиатура
• 1x PS/2 мишка
• 1x eSATA
• 1x LAN (RJ45)
• 2x USB 3.0
• 8x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1x Optical S/PDIF out
• 6x аудио жакове

Слотове за разширение:

• 2x PCIe 2.0 x16 (dual x16)
• 2x PCIe 2.0 x16 (x4 mode, black)
• 1x PCIe 2.0 x1
• 1x PCI

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 port (19-pin)
• 3x USB 2.0 connectors supports additional 6 USB 2.0 ports
• 1x TPM connector
• 1x COM port(s) connector
• 7x SATA 6Gb/s connectors
• 1x CPU Fan connector (4 -pin)
• 1x CPU OPT Fan connector (4 -pin)
• 3x Chassis Fan connectors (4 -pin)
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel (Q-Connector)
• 1x DirectKey Button
• 1x DRCT header
• 1x MemOK! button
• 1x Clear CMOS jumper
• 1x USB BIOS Flashback button

В комплекта са включени:

• Упътване
• 4x SATA 6Gb/s кабел
• 1x SLI
• 1x Q-connector (2 in 1)
