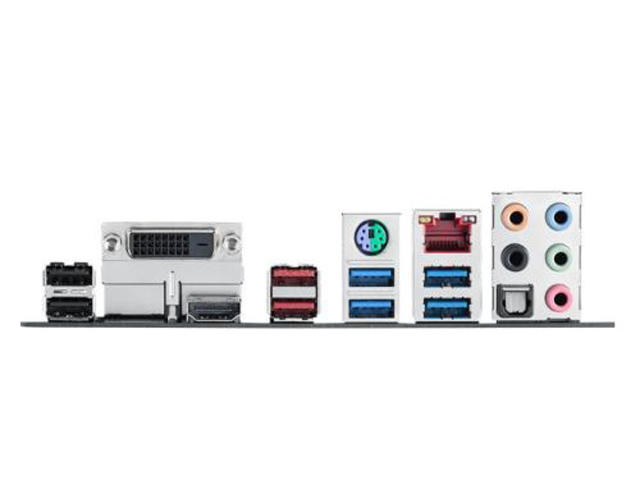

Интерфейси:
- 1 x PS/2 мишка/ клавиатура
- 1 x DVI
- 1 x HDMI
- 1 x LAN (RJ45)
- 2 x USB 3.1 Type-A
- 2 x USB 2.0
- 4 x USB 3.0
- 1 x Optical S/PDIF out
- 5 x аудио жака
Слотове за разширение:
- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
- 1 x PCIe 3.0/2.0 x16 (x2 mode)
- 3 x PCIe 3.0/2.0 x1
Конектори:
- 1 x AAFP connector
- 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
- 1 x TPM connector(s)
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (2 x 4 -pin)
- 1 x AIO_PUMP connector
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x CPU_OV jumper
Съхранение:
Intel Z270 чипсет:
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s порта
- Intel Optane Memory Ready ( поддържа се само от 7ма генераия Intel процесори)
Памет:
- 4 цокъла DIMM DDR4, поддържащи до 64GB системна памет
- Поддръжка на модули памет DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered, Register Memory

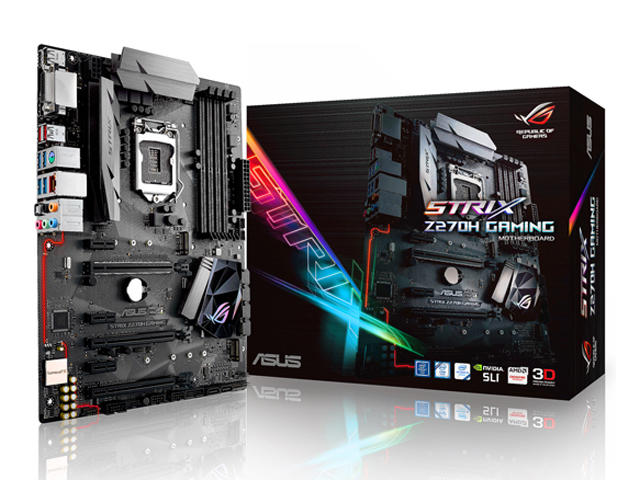

Комплектът включва:
- I/O Shield
- 2 x SATA 6Gb/s кабели
- 1 x инструмент за инсталация на CPU1 x M.2 Screw Package
- 1 x SLI HB BRIDGE(2-WAY-M)
Аудио:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
